- XL4016E1 200W Step Down Power Supply Module
Click Image to Preview

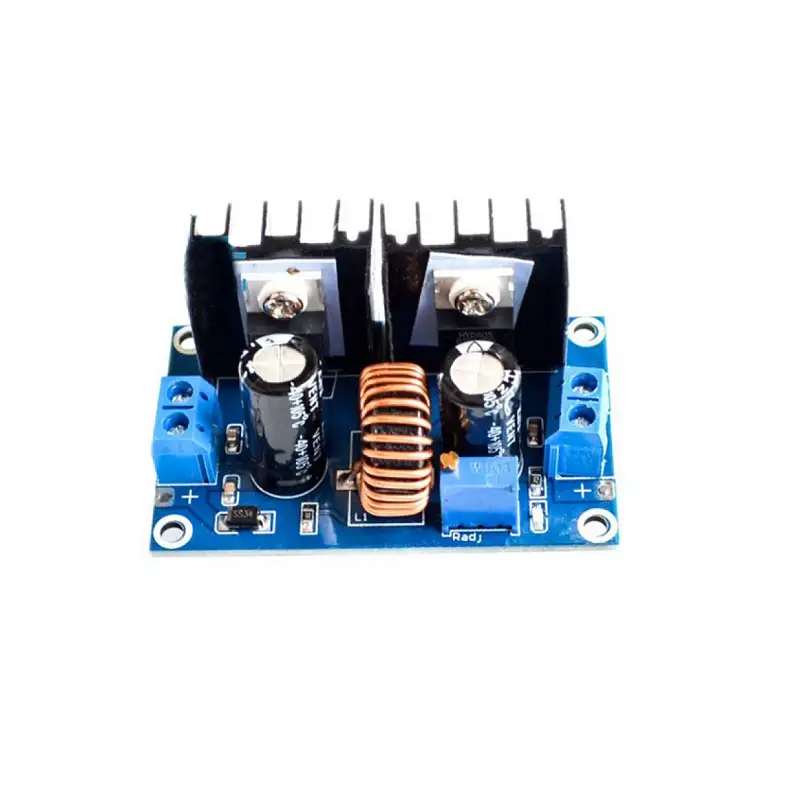

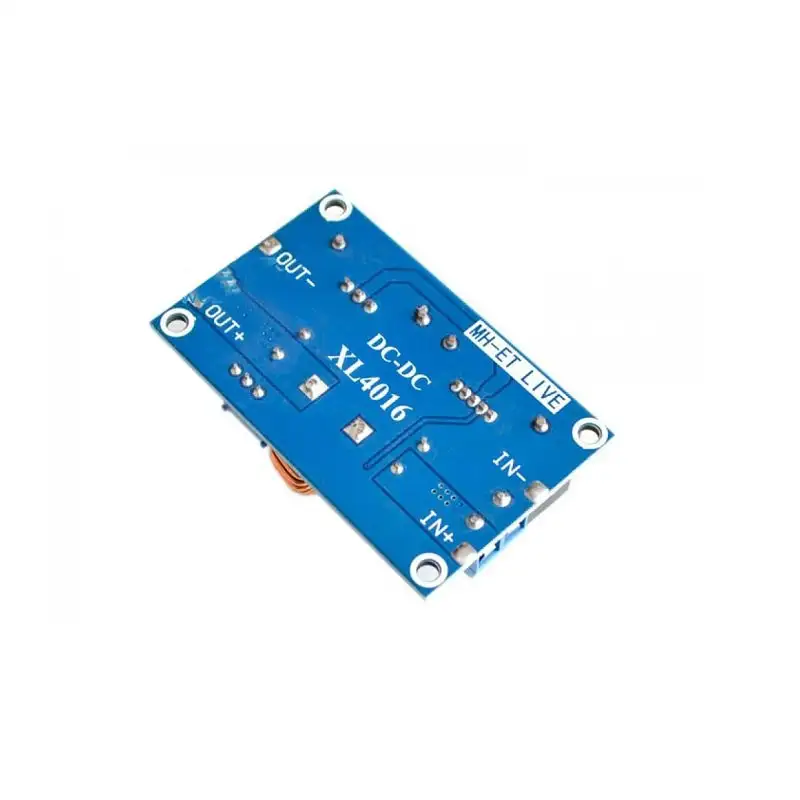

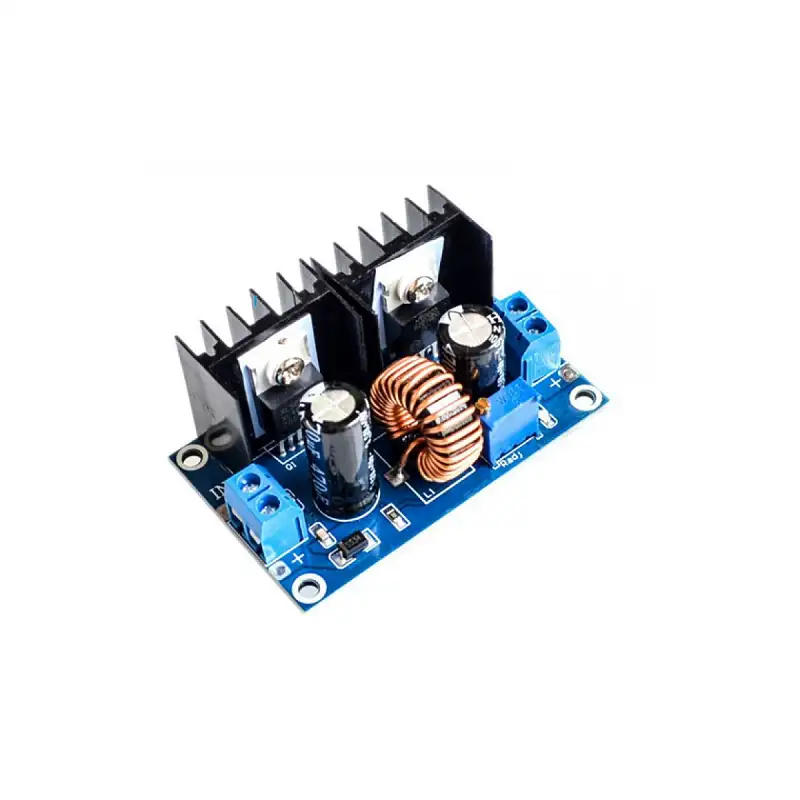

XL4016E1 200W Step Down Power Supply Module
Brand: Generic | SKU: 5818193
₹ 282.00
₹ 455.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
This XL4016E1 200W Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC. This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.
Features:
- Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
- Input: IN+ input positive IN- input negative
- Output: OUT+ output positive OUT- output negative
- Static power consumption is only about 6mA.
- Connection: Welding, plus pin can be directly soldered after the PCB.
- Short circuit protection: current limiting, thermal protection, self-recovery.
- Non-isolated step-down (BUCK)switching regulator.
- Short circuit protection: Current limiting, self-recovery
- Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
- Non-synchronous rectification
Package Includes:
1 x XL4016E1 200W Step-Down Power Supply Module
Specifications:
| Input Voltage (V) |
4 to 40VDC |
| Output Voltage (V) |
1.25 to 36VDC |
| Max Current (A) |
8 |
| Maximum Power (W) |
200 |
| Efficiency |
94% |
| Swithing Frequency (KHz) |
180 |
| Length (mm) |
61 |
| Width (mm) |
41 |
| Height (mm) |
27 |
| Weight (gm) |
51 |
|
|
|
