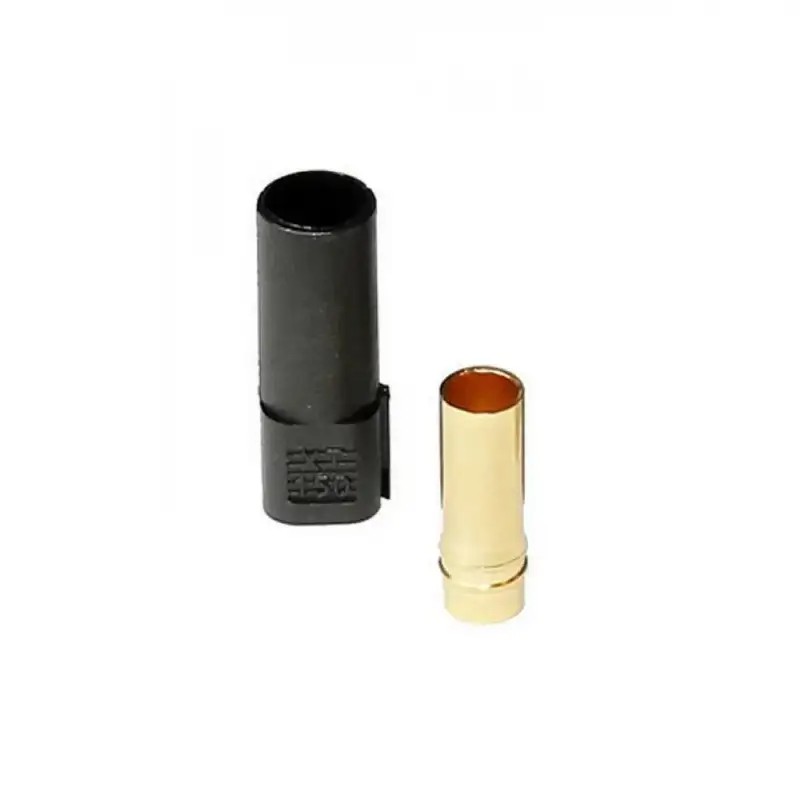

XT150 Gold Plated Female Connector

XT-150 are High-Quality big Sprung Gold Connectors by Amass that have a large contact area, making them great for high power applications up to 130A!

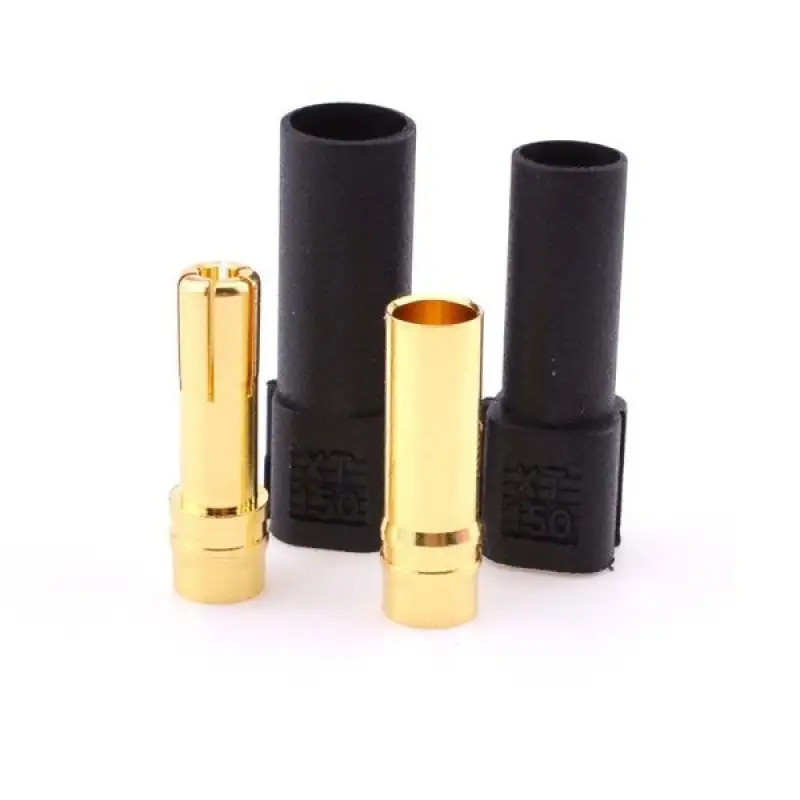

The male connector uses a collect style spliced contact area to provide more surface to surface contact than standard gold connectors which use a thin mushroomed sheet as a spring. The connectors come in a pack of 1(1 set of 2, 2 in total) and can be linked together with the dovetail join on the outside of each Nylon housing. Easy to solder and use, they are perfect for large batteries, ESC or motors!

Note: These connectors are the battery side connector. If u want to use to connect battery then be sure about polarity, don't go through color.

Features :

1. Connector type: XT150
2. Metal Material: Brass
3. Plating: Gold
4. Gender: Female
5. Cover Material: Plastic
6. Colour: Black
7. Designed for currents up to 130 Amps Max.
8. Ideal for those large-scale electric projects where low loss connectors are essential

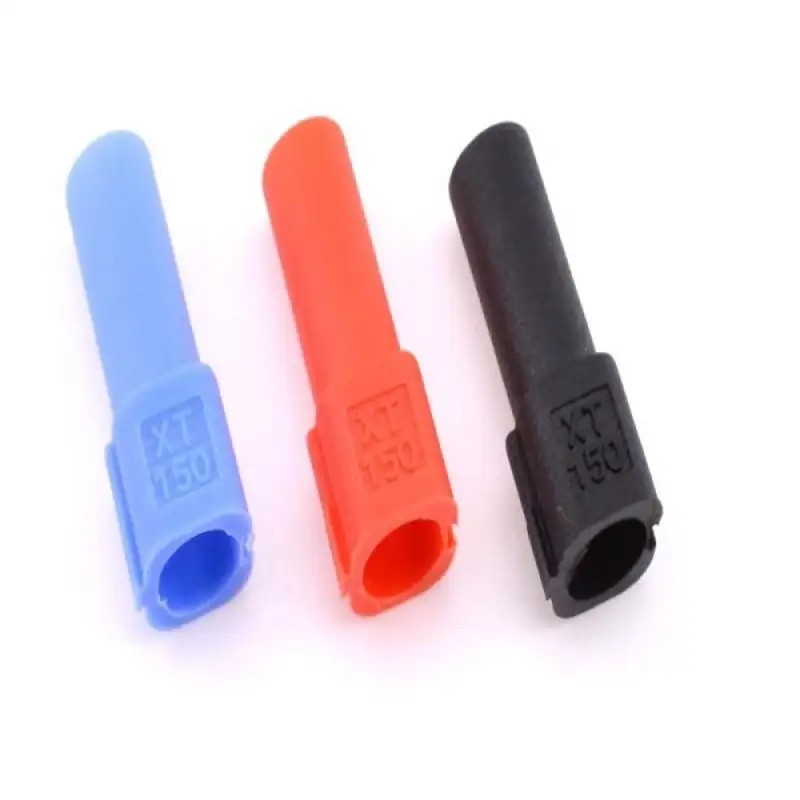

9. The plastic case is detachable, so you can array the wires in the sequence you prefer, or keep them separated from each other
10. 6mm gold bullet connector, compatible with 8AWG silicone wire.
11. Used for: ESC, LIPO Battery, Motor, etc.

Package Includes:

1 x XT150 Female Gold Connector (Black).

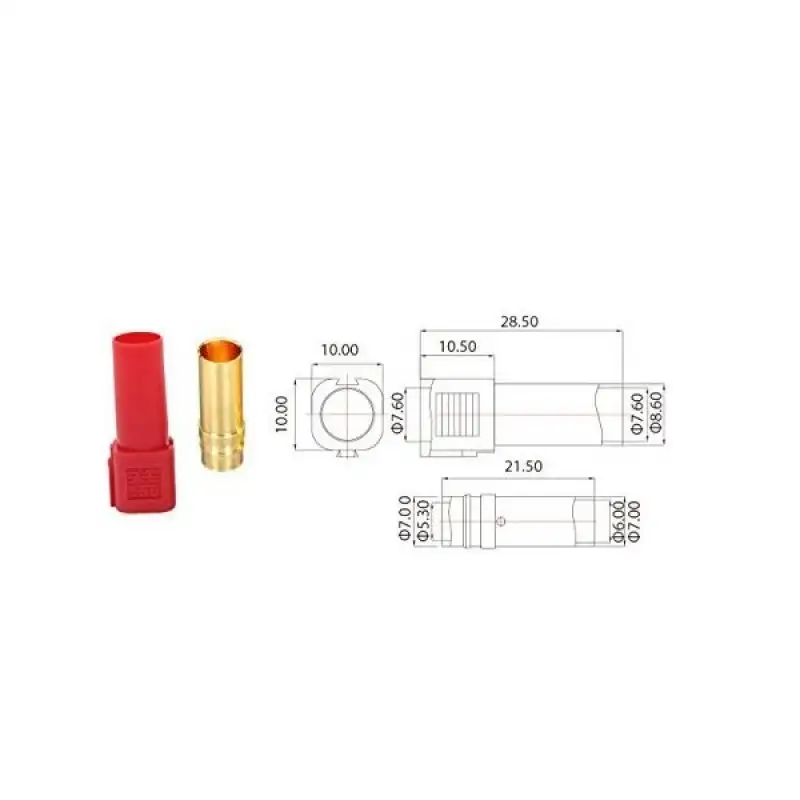

Specifications:

Connector type	XT150
Current Capacity	130 Amps Max
Diameter (mm)	6
Gender	Female
Length (mm)	29
Weight (gm)	4
