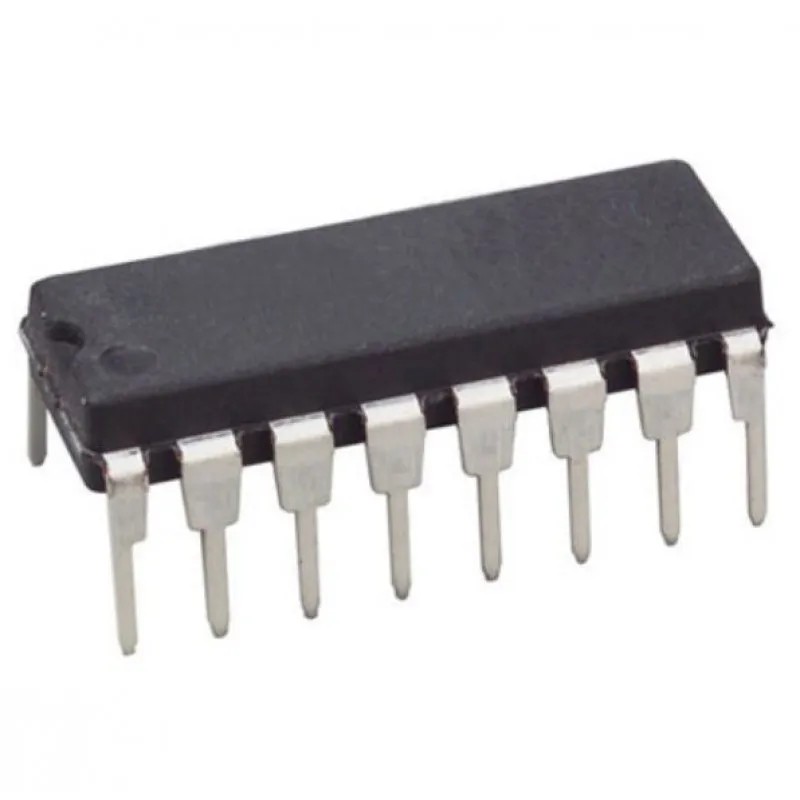

CD4053 Triple 2-channel Multiplexer/Demultiplexer IC DIP-16 Package

The CD4053 analog multiplexers/demultiplexers are digitally controlled analog switches having low “ONâ€_x009d_ impedance and very low “OFFâ€_x009d_ leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3−15V. For example, if VDD = 5V, VSS = 0V and VEE = −5V, analog signals from −5V to +5V can be controlled by digital inputs of 0−5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD−VSS and VDD−VEE supply voltage ranges, independent of the logic state of the control signals. When a logical “1â€_x009d_ is present at the inhibit input terminal all channels are “OFFâ€_x009d_. CD4053BC is a triple 2-channel multiplexer having three separate digital control inputs, A, B, and C, and an inhibit input. Each control input selects one of a pair of channels which are connected in a single-pole double-throw configuration.

Features:-

■ Wide range of digital and analog signal levels: digital 3 – 15V, analog to 15Vp-p

â–  Low “ONâ€_x009d_ resistance: 80Ω (typ.) over entire 15Vp-p signal-input range for VDD − VEE = 15V

â–  High “OFFâ€_x009d_ resistance: channel leakage of ±10 pA (typ.) at VDD − VEE = 10V

■ Logic level conversion for digital addressing signals of 3 – 15V (VDD − VSS = 3 – 15V) to switch analog signals to 15 Vp-p (VDD − VEE = 15V)

■ Matched switch characteristics: ∆RON = 5Ω (typ.) for VDD − VEE = 15V

■ Very low quiescent power dissipation under all digital-control input and supply conditions: 1 µ W (typ.) at VDD − VSS = VDD − VEE = 10V

â–  Binary address decoding on chip

Specifications:-

Parameter	Specification
Part number	CD4053BC
DC Supply Voltage (VDD)	−0.5VDC to +18VDC
Input Voltage (VIN)	−0.5VDC to VDD + 0.5VDC
Storage Temperature Range (TS)	−65°C to +150°C
Power Dissipation (PD) Dual-In-Line	700 mW
Lead Temperature (TL)	260°C

(For more detailed specification refer Data Sheet)

Related Document:-

CD4053 IC Datasheet
