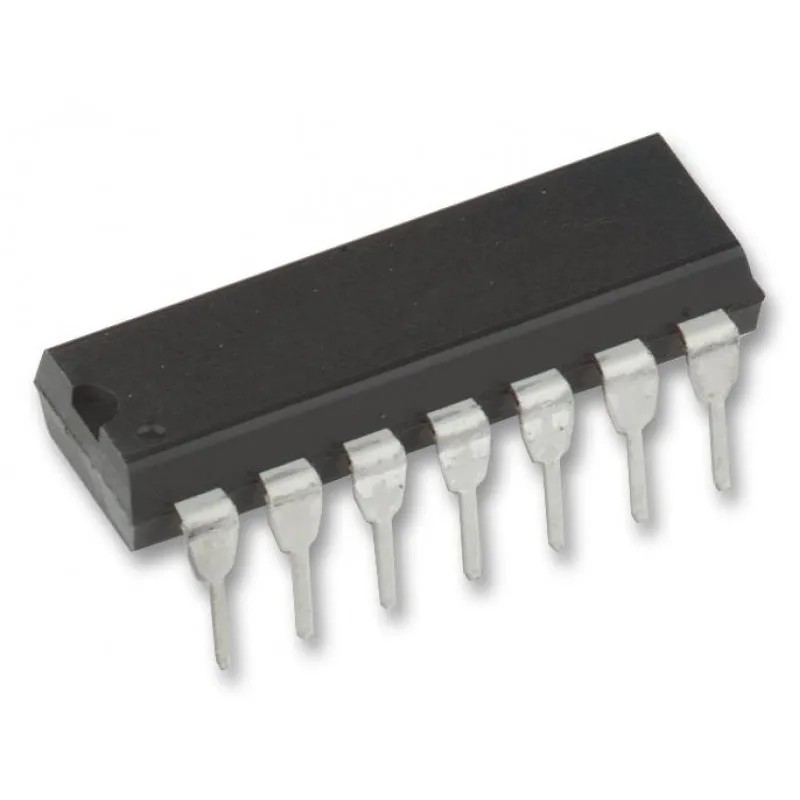

CD4093 Quad 2-Input NAND Schmitt Trigger IC DIP-14 Package

CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (V _P ) and the negative voltage (V _N ) is defined as hysteresis voltage (V _H ) (see Fig. 2).

The CD4093 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Features:-

• Schmitt-trigger action on each input with no external components
• Hysteresis voltage typically 0.9 V at V _DD = 5 V and 2.3 V at V _DD = 10 V
• Noise immunity greater than 50%
• No limit on input rise and fall times
• Standardized, symmetrical output characteristics
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
• Applications:
  • Wave and pulse shapers
  • High-noise-environment systems
  • Monostable multivibrators
  • Astable multivibrators
  • NAND logic

Specifications:-

Parameter	Specification
Part number	CD4093B
Technology Family	CD4000
VCC (Min) (V)	3
VCC (Max) (V)	18
Channels (#)	4
Inputs per channel	2
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Standard Speed (tpd > 50ns)
Data rate (Max) (Mbps)	8
IOL (Max) (mA)	6.8
IOH (Max) (mA)	-6.8
Package size: mm2:W x L (PKG)	14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14)
Rating	See Data Sheet
Operating temperature range (C)	-55 to 125
Package Group	PDIP|14

Related Document:-

CD4093 IC Datasheet
