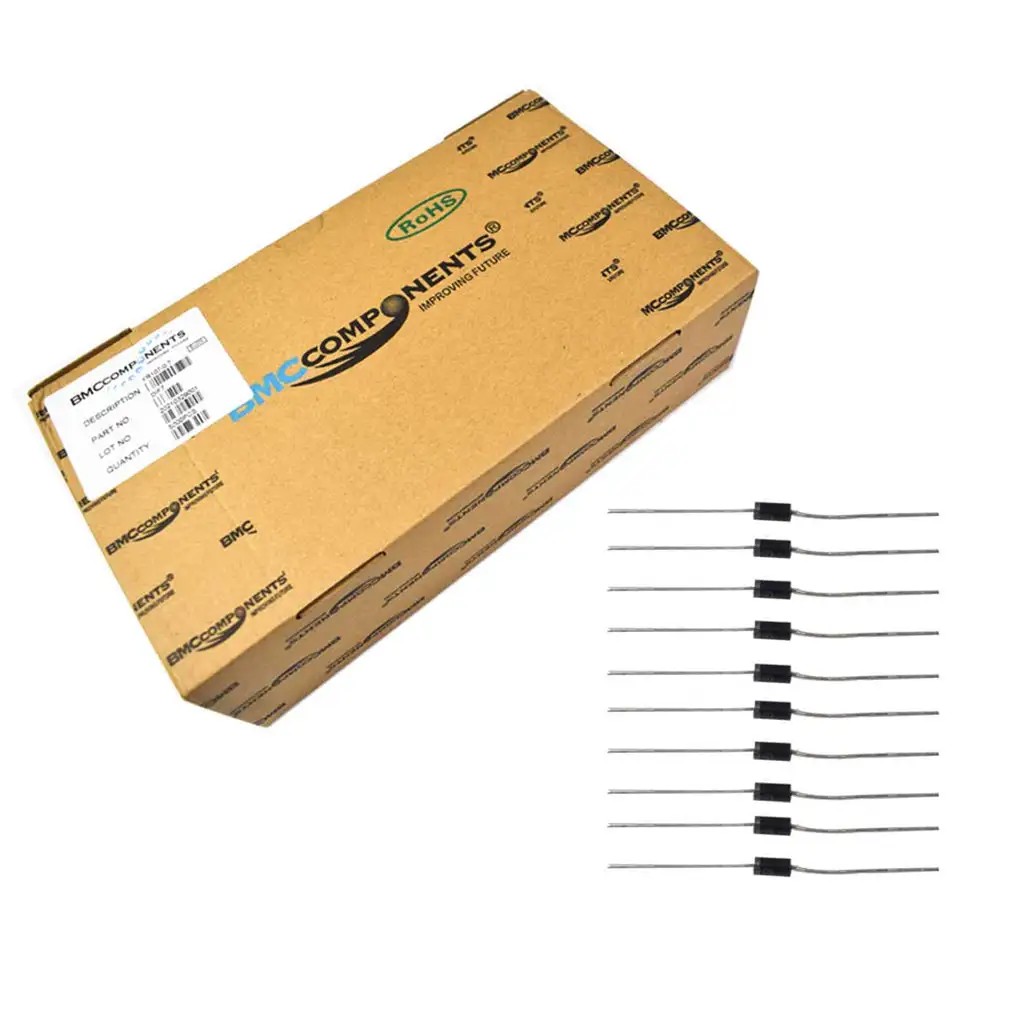

FR107 1.0A Fast Rectifier Diode DO-41 (Pack of 5000)

The FR107 is a 1.0 Ampere Fast Recovery Axial Rectifiers Diode. Fr107 is a fast recovery diode mainly used in fast-switching applications. It comes with two terminals called an anode and a cathode. The maximum current carrying capacity is 1A it withstands peaks up to 50A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 30uA which is negligible.

Features

FR107

BMC Component

Forward Voltage

1.3V (1A)

Peak Reverse Voltage

1000V

Maximum RMS Voltage

700V

Average Forward Current

1A

Operating Temperature Range

-65°C to + 150°C

Low Reverse Leakage Current

30µA

Mounting Type

THD

Quantity

5000

Package

DO-41
