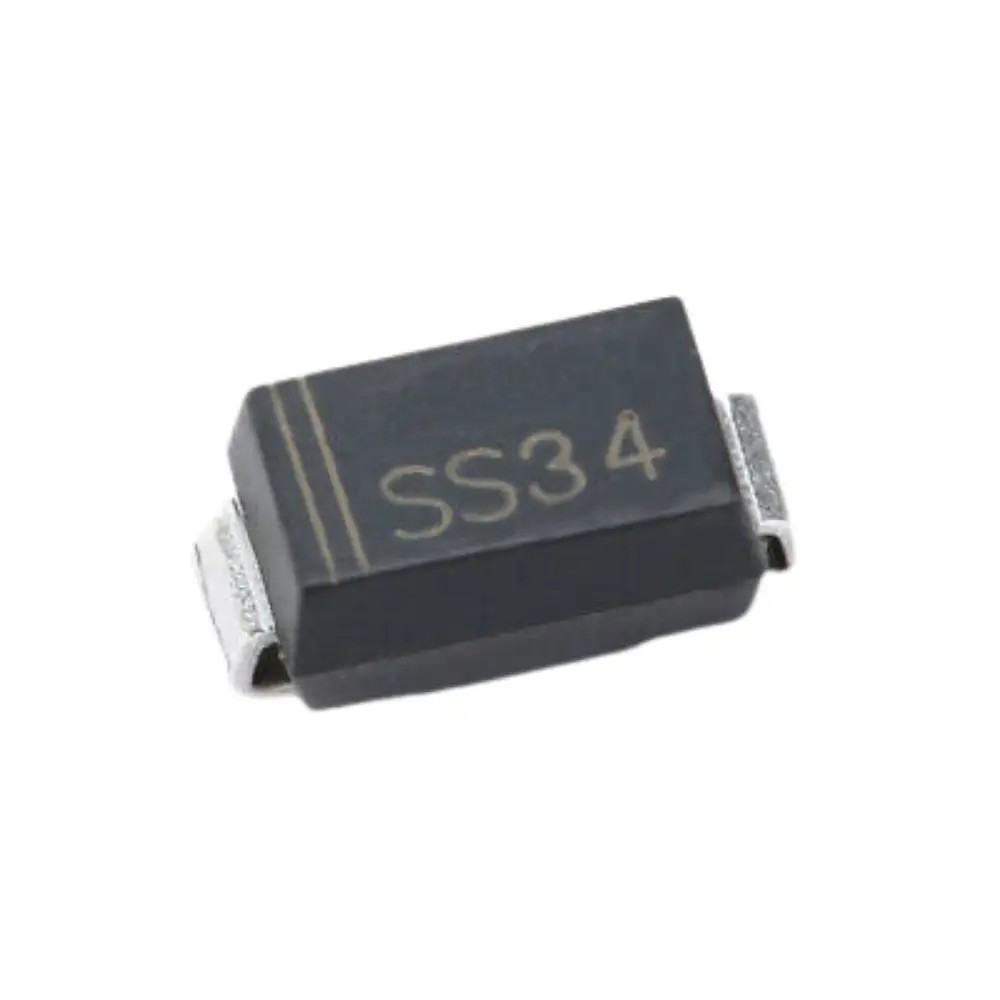

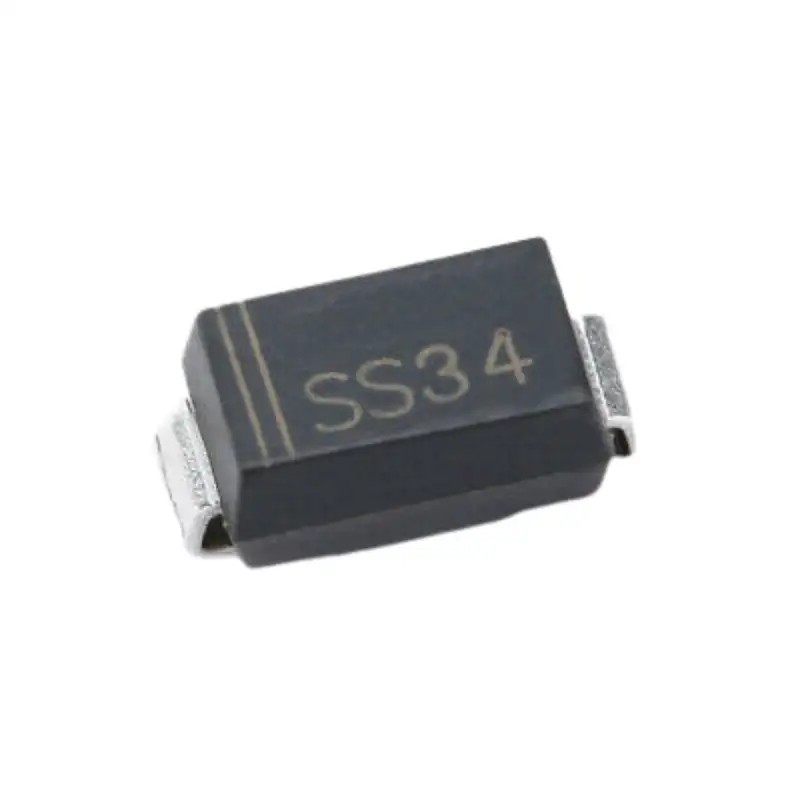

SS34 (1N5822) SMD Schottky Diode

The SS34 is a surface mount High Power Schottky Diode with a 0.5V voltage drop and a 3A forward current. This diode has high efficiency and a 100A surge current capacity. It is often employed in applications such as freewheeling, DC/DC converters, and reverse polarity protection.

Features

Maximum average forward rectified current- If(AV)

3.0 A

Maximum repetitive peak reverse voltage- VRRM

40 V

Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load -Ifsm

100 A

Reverse Current (IR)

0.5mA

Maximum RMS voltage

28V

Package

SMD (DO-214AC)

Operating junction temperature range TJ max

-55°C to +150°C

Circuit configuration

Single
