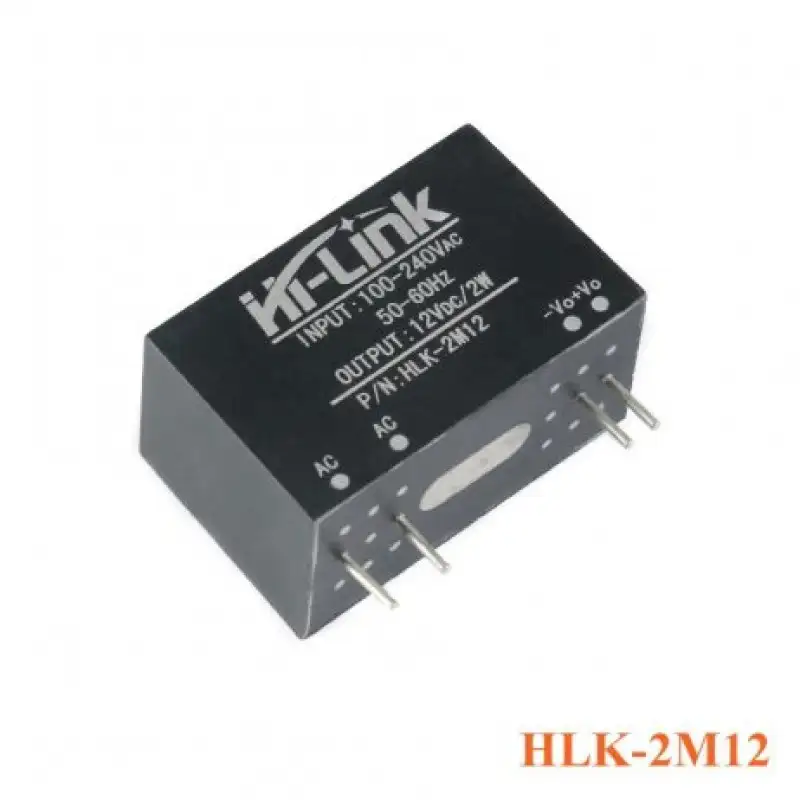

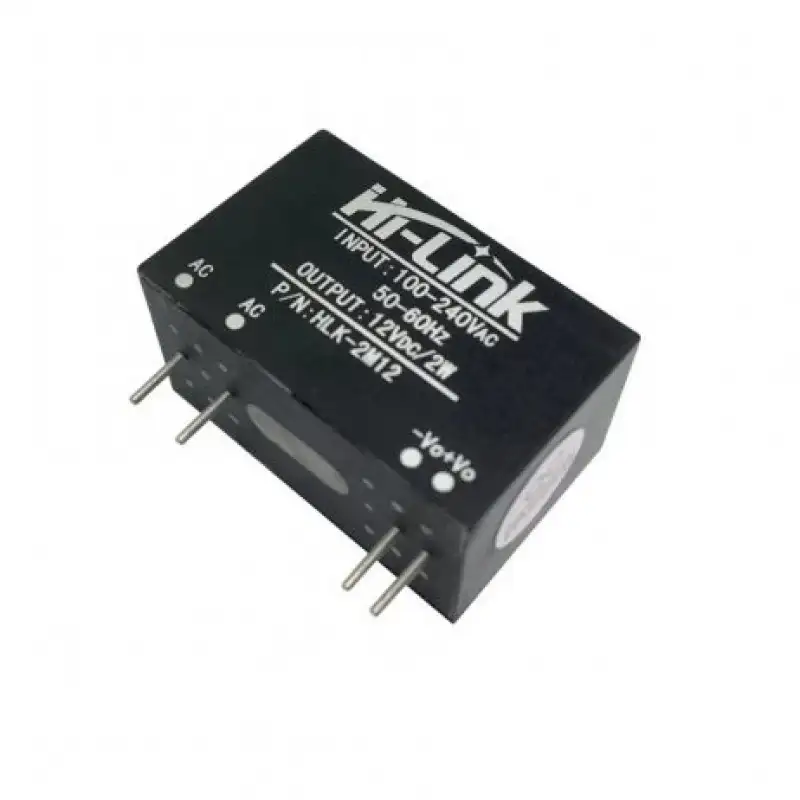

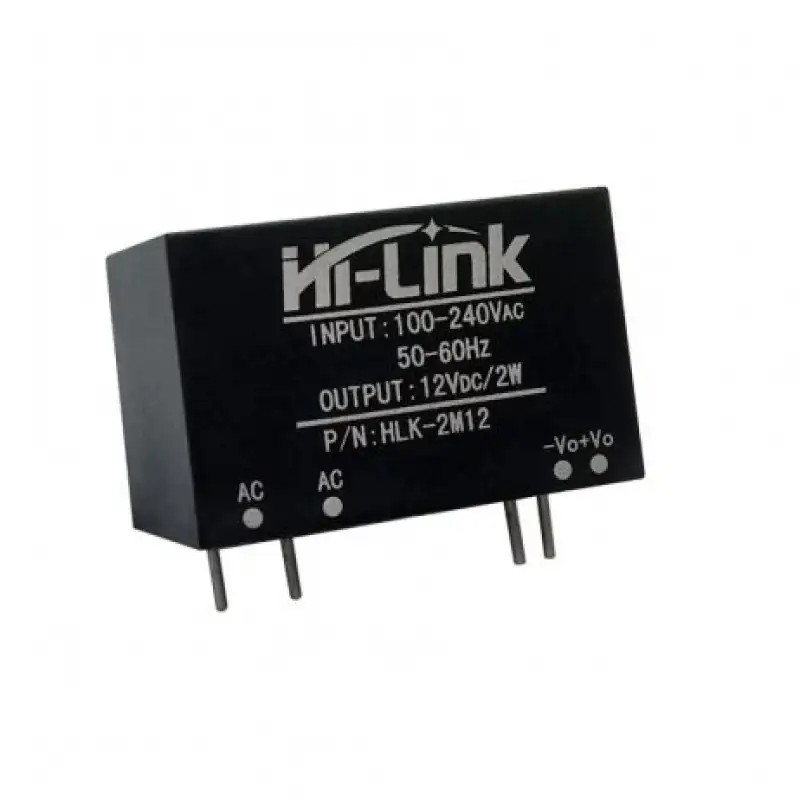

HLK-2M12 Hi-Link 12V 2W AC to DC Power Supply Module

HLK-2M12 Hi-Link 12V 2W AC to DC Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 12V DC from 100V AC 240V AC and has a power rating of 2 Watt. This makes it perfect for small projects that need a 12 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.

The 2W ultra-small series power supply module is a small volume, high-efficiency power module for customers designed by Hi-Link. It has the advantage of the global input range, low-temperature rise, low power consumption, high efficiency, high reliability, etc. It has been widely used in smart homes, automation control and other industries.

This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.

Features:

1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. All voltage input (AC: 100 ~ 240V)
4. Low ripple and low noise
5. Output overload and short circuit protection
6. High efficiency, high power density
7. The product is designed to meet the requirements of the EMC and Safety Test
8. Low power consumption, environmental protection, no-load loss <0.1W

Environmental conditions:

1. Technical indicators: Single bit
2. Working temperature: 20-60 +degree
3. Storage temperature: + 80-40 -degree
4. Relative humidity: 5-95%
5. The cooling way: Natural cooling
6. The atmospheric pressure: 80-106Kpa
7. The altitude: 2000M or less.

Specifications:-

Model Number	HLK-2M12
Output Power(W)	2
Output Type	Single
Input Voltage(V)	100-240
Output Voltage(V)	12
Output Current(mA)	170
Working Temp(C)	-25 +60
Working Humidity	5-95
Length(mm)	30
Width(mm)	16
Height(mm)	19
Weight(g)	17

Package Includes:

1 x HLK-2M12 Hi-Link 12V 2W AC to DC Power Supply Module
