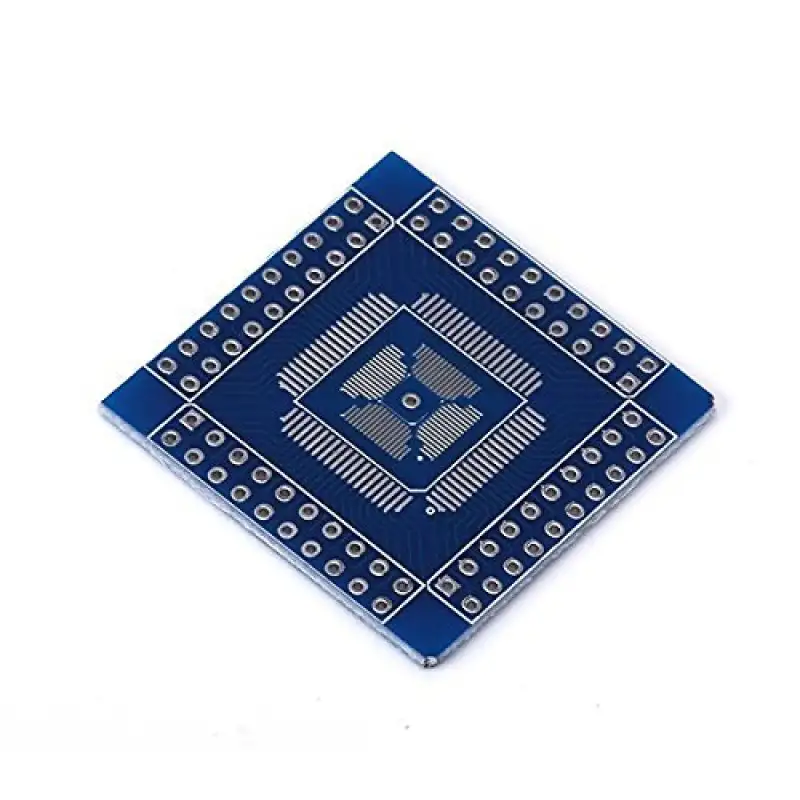

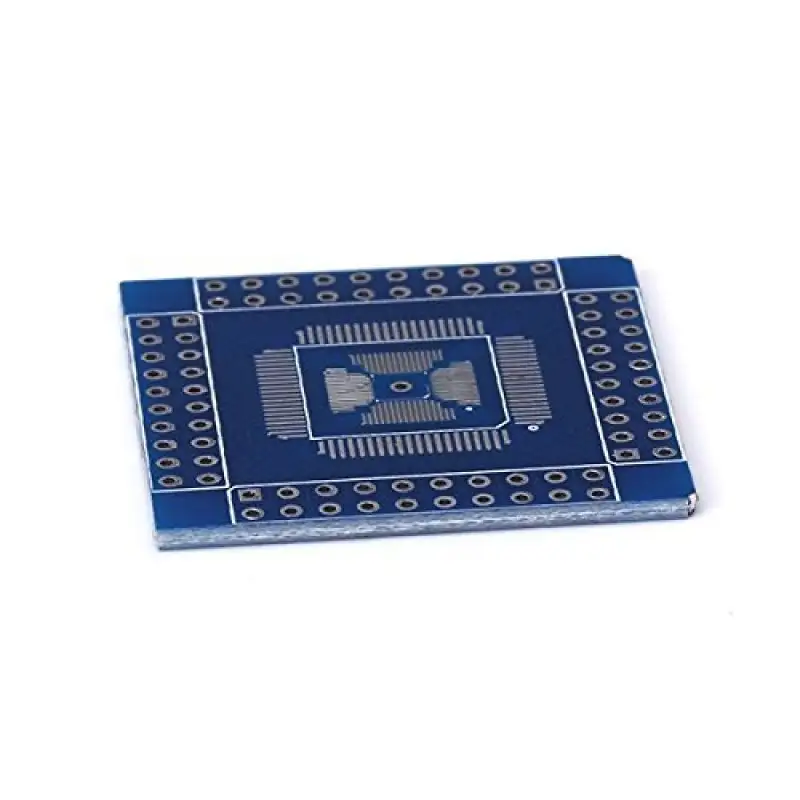

QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter

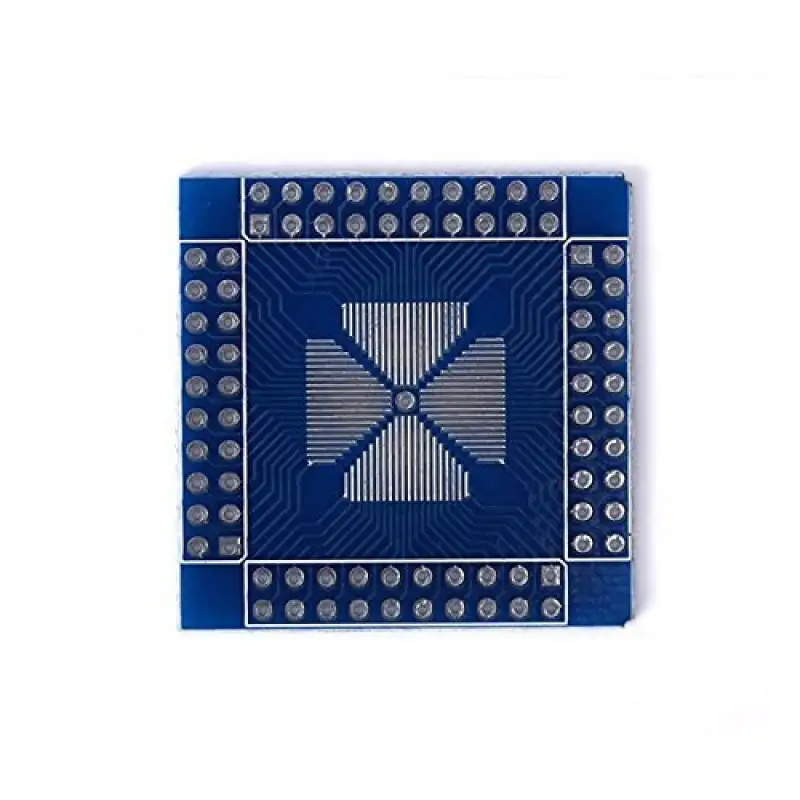

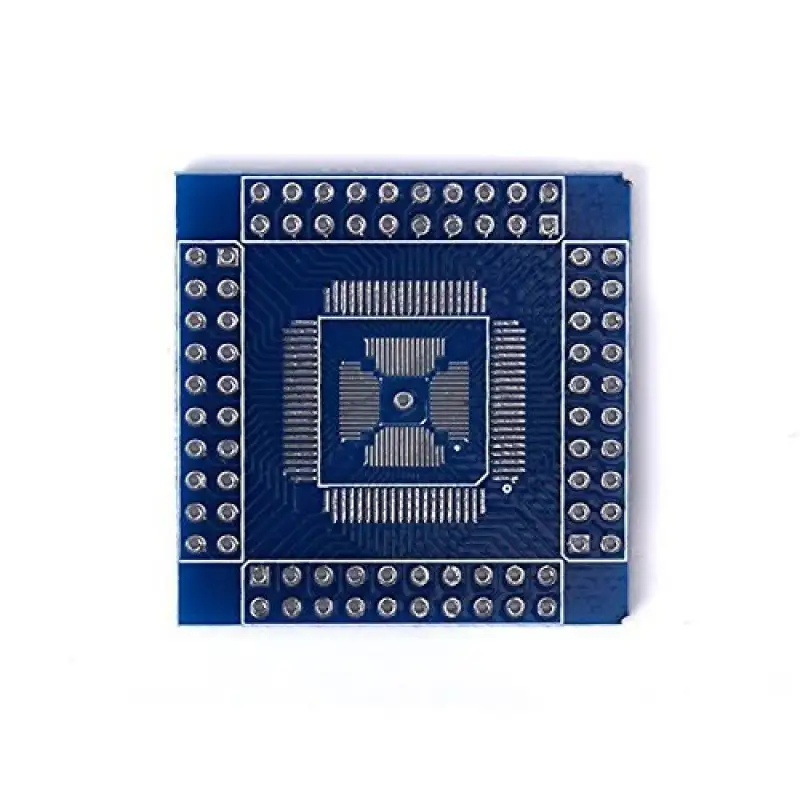

This double-sided pin board features one side of the patch is 16 pin -80pin turn DIP, 0.5mmspacing and the other side is 40pin -64 pin, pitch 0.4mm pitch and 80 pins 0.65 spacing. QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter has unique design makes the board compatible with more models of IC packages QFP Side of the patch 16 pin -80pin turn DIP, 0.5mmspacing. The other side is 40pin -64 pin, pitch 0.4mm pitch and 80 pins 0.65 spacing.

Note: The actual subject-specific parameters shall prevail. We can not guarantee that your chip can fit with the item perfect.

Specifications:

• Dimensions: 36 x 36 mm.
• Pitch Patch: 0.4 mm.
• Pin Header: 2.54 mm.
• PCB Color: Blue.

Package Includes:

1 x QFN/ TQFN/ LQFP QFP 16-80 PIN Switch Over DIP Double-sided PCB Adapter.

Specifications :-

Pitch Patch (mm)	0.4
Pin Header (mm)	2.54
Length (mm)	36
Width (mm)	36
Height (mm)	1.7
Weight (gm)	5
