SOP8 TSSOP8 SSOP8 TO DIP8 Adapter-2 Pieces Pack

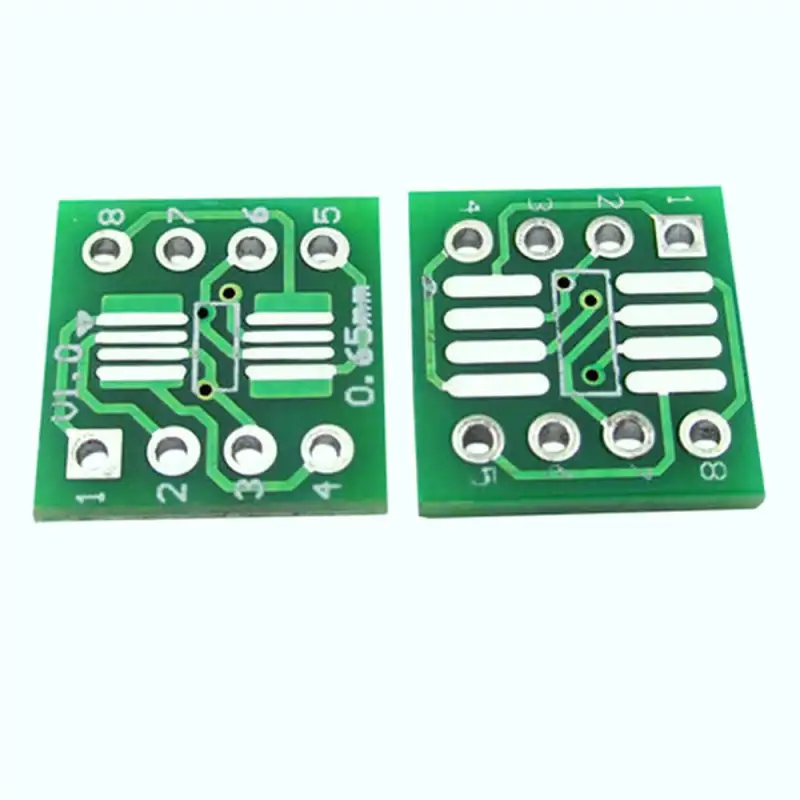

TheSOP8 TSSOP8 SSOP8 TO DIP8 ADAPTER is a tiny adapter for all SO, SOP, TSSOP, MSOP based SMD chips/transistors. You can solder your SMD chips or use for programming PIC12F629/675 like chips. It is Dual-sided SOP8/SOIC8/SO8/TSSOP8/SSOP8 SMD to DIP adapter, one side is for pin pitch size 0.65 mm, and another side is for 1.27 mm pitch.

Just connect this adapter on your PIC programmer and push the PIC12F series chips on PCB for loading the code into chips.

Note: Header pins are not included in Package.

Specifications:

1. Dimensions: 12 x 12 mm.
2. Pitch Patch: 0.4 mm.

Features:

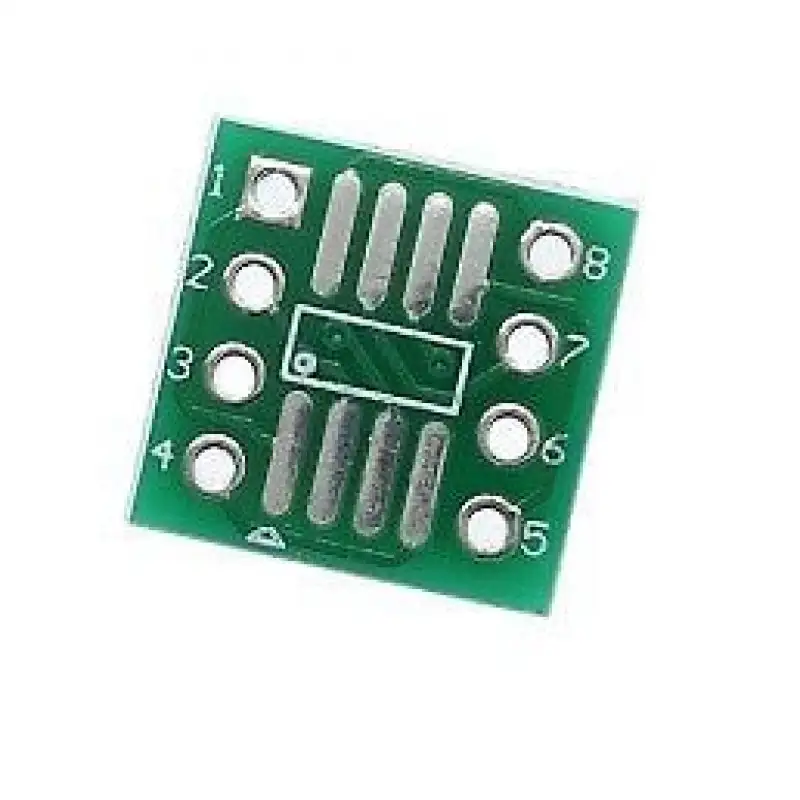

1. This is a Double-Side PCB Circuit Board, Each PCB board has 8 pins, It is compatible with 4 pins 6 pins and 8 pins chips.

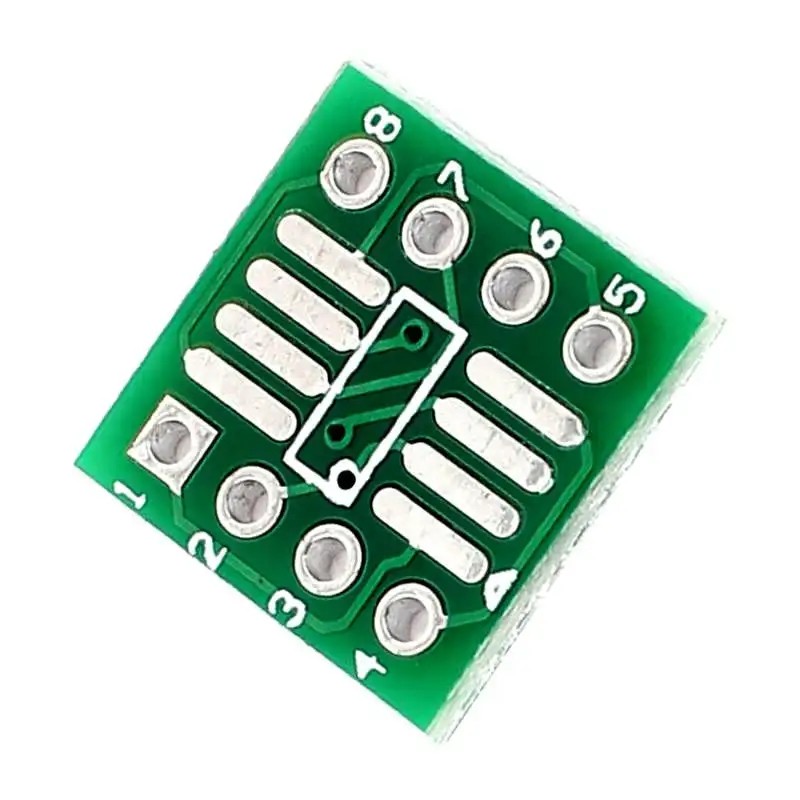

2. The side for pin pitch size 1.27mm, It can be used for most of the SO, SOP, SOIC to 2.54mm DIP.

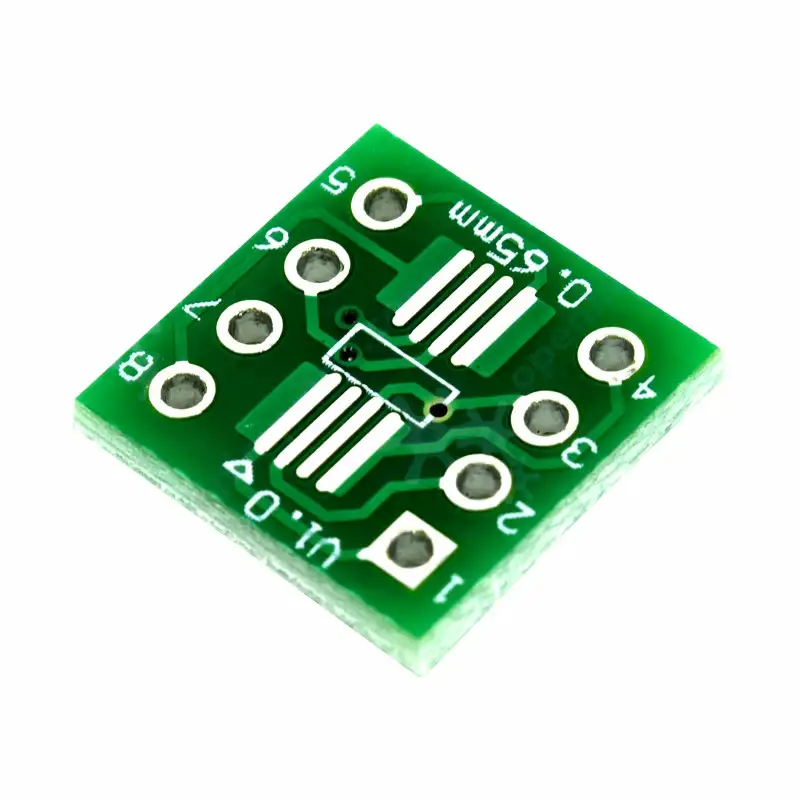

3. B side for pin pitch size 0.65mm, It can be used for most of the SSOP, TSSOP, MSOP to 2.54mm DIP.

Package Includes:

1 x SOP8 TSSOP8 SSOP8 TO DIP8 Adapter-2 pieces Pack

Specifications :-

Length (mm)	12
Width (mm)	12
Height (mm)	1.5
Weight (gm)	1
