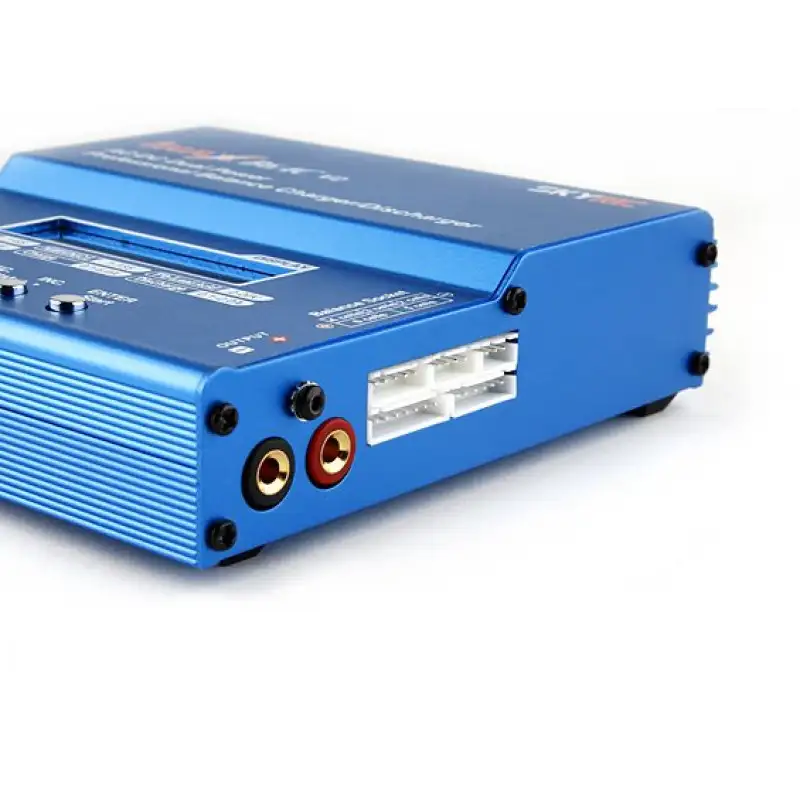

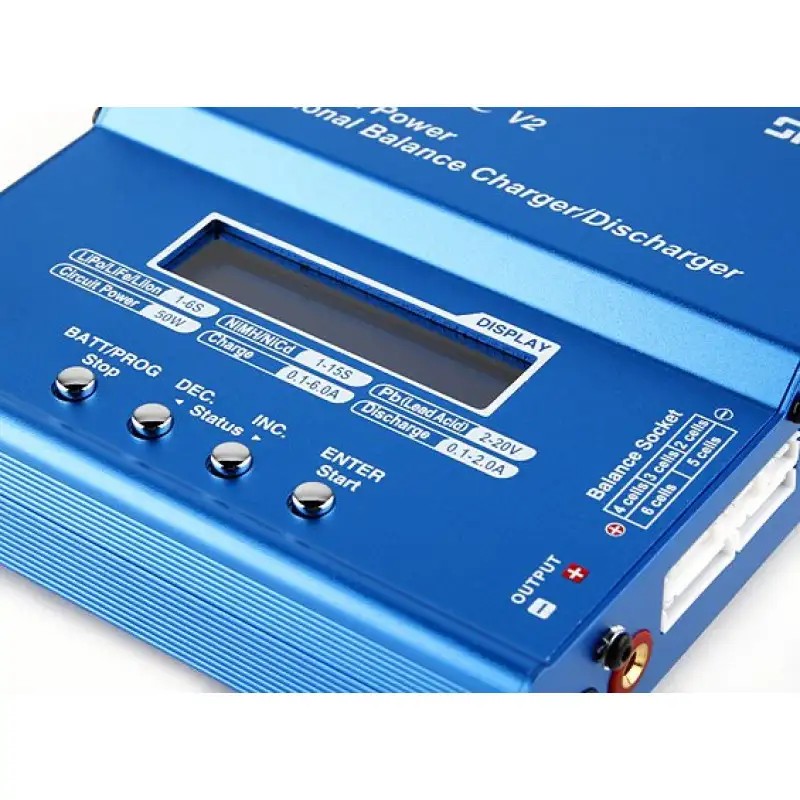

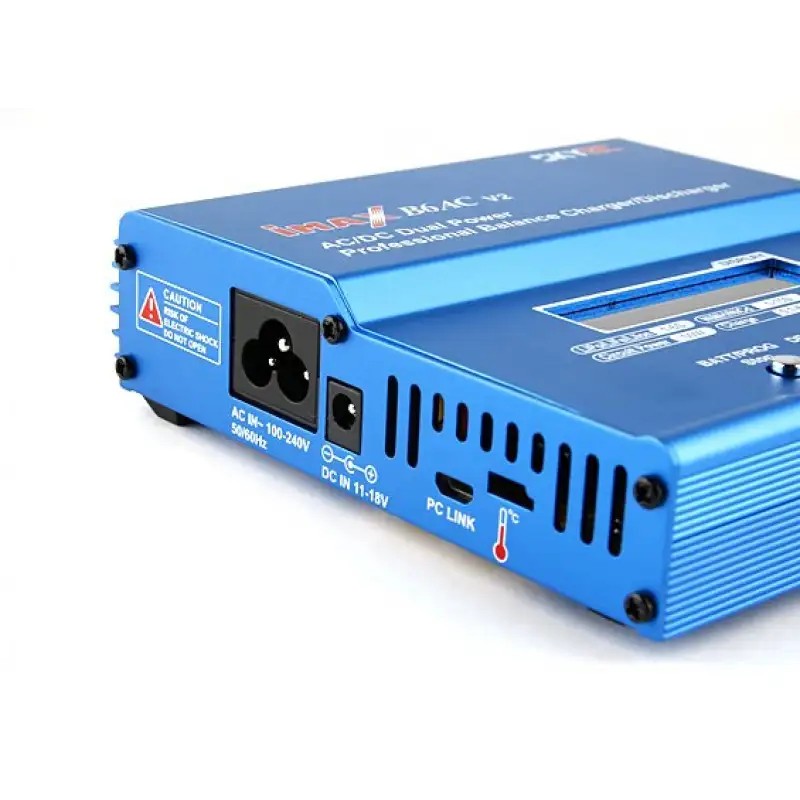

SkyRC IMAX B6AC V2 Professional Balance Charger/Discharger (Original)

In Robotics, we deal with different types of batteries and this makes the workstation messy if we use different battery chargers for different batteries. Here is the solution, the new SkyC IMAX B6 AC V2 Professional Balance Charger / Discharger.

This is an upgraded version of its last IMAX B6AC model. This charger can be used to charge and discharge various types of batteries such as lipo, lion etc. It keeps track of each cells charging and discharging, no need to add external balance charger or discharger. This charger is PC-controlled and firmware upgradeable. You can download updates for this charger from the Skyrc website.

The latest version of the popular IMAX B6AC has arrived and now boasts some unique new features. The latest V2 Model now offers PC connectivity which allows the user to control the charger via your home computer and upgrade the firmware as and when necessary.

This is Smartphone control via WiFi module (both ios and Android) using its own app.

The B6AC V2 now gives you the ability to adjust the terminal voltage, which makes the charger the perfect charging solution for heavy-duty batteries.

The B6AC V2 can also be used as a Lithium battery meter / internal resistance meter and boasts additional functions which include, automatic charging current limit, capacity limit, and processing time limit, making the B6AC V2 one of the safest chargers available today.

Please note: These items are genuine and carry the holographic sticker of authenticity.

Features :

1. PC connectivity
2. Microprocessor controlled
3. Delta-peak sensitivity
4. Individual cell balancing
5. Li-ion, LiPo, and LiFe capable
6. Ni-Cd and NiMH capable
7. Large range of charge currents and automatic charge current limit
8. Store function allows safe storage current
9. Time limit function
10. Input voltage monitoring (Protects car batteries at the field)
11. Data storage (5 pack memory)
12. Battery break in and cycling.
13. Terminal voltage adjustment for heavy-duty batteries
14. It can be controlled using smartphones and PCs.
15. Balance charging and discharging options
16. Its easy to upgrade

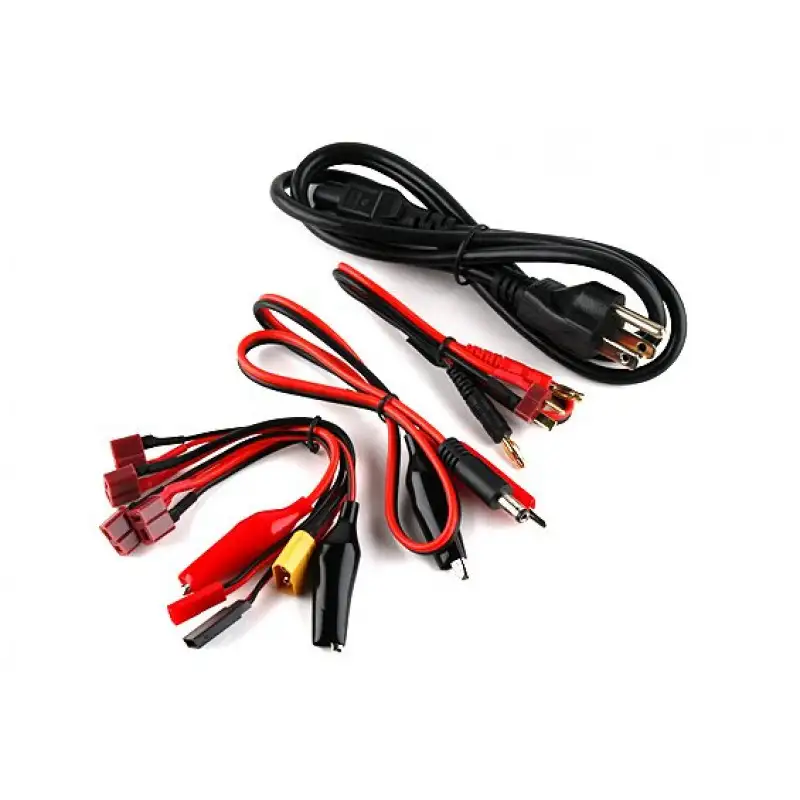

Package Includes:

1 x SkyRC IMAX B6AC V2 Professional Balance Charger.
1 x AC 100-240V 50/60 Hz 16A power Cord with Eu Plug.
1 x DC Jack plug to crocodile clips.
1 x male T connector charge lead to 4mm banana plugs
1 x XT60 charge lead
1 x JST charge lead
1 x Crocodile clip charge lead
1 x Futaba style charge lead.
1 x English manual.

Specifications:

Input Voltage (V AC)	110 ~ 240
DC Input Voltage Range (V)	12
Output Power(Watt)	50W
Charge Current Range (A)	0.1 ~ 5
Maximum Discharge Power (W)	5
Dischage Current Range (A)	0.1 ~ 1.0
Drain Current for Balancing Li-Po's (mA/Cell)	300
Li-ion/Po cell count	1 ~ 6
NiCd/NiMH cell count	1 ~ 15 Cells
Pb battery voltage	2 ~ 20
Dimensions (mm) LxWxH	135 x 144 x 36
Weight (gm)	646
