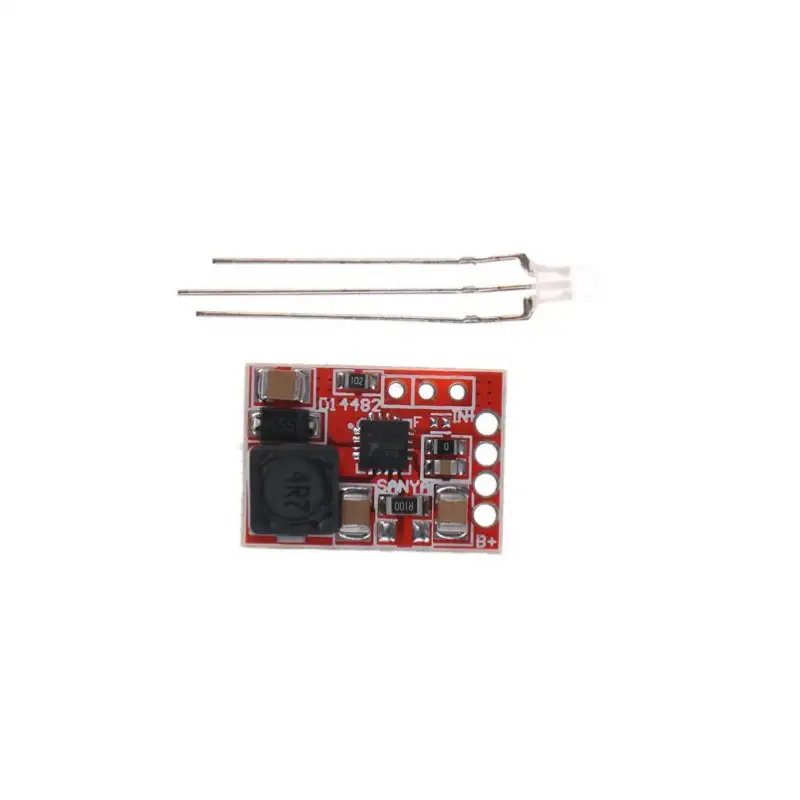

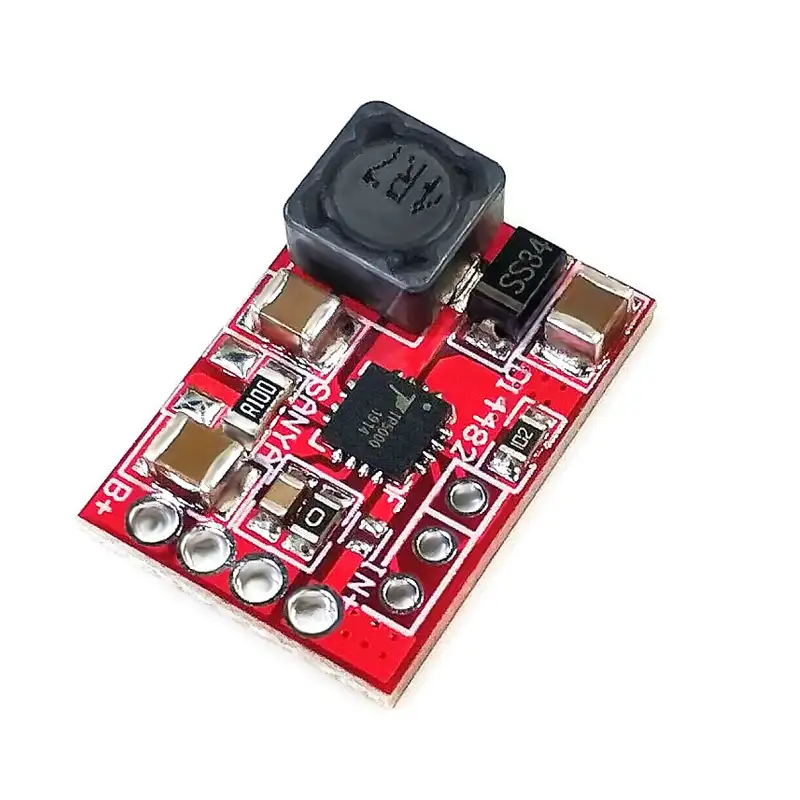

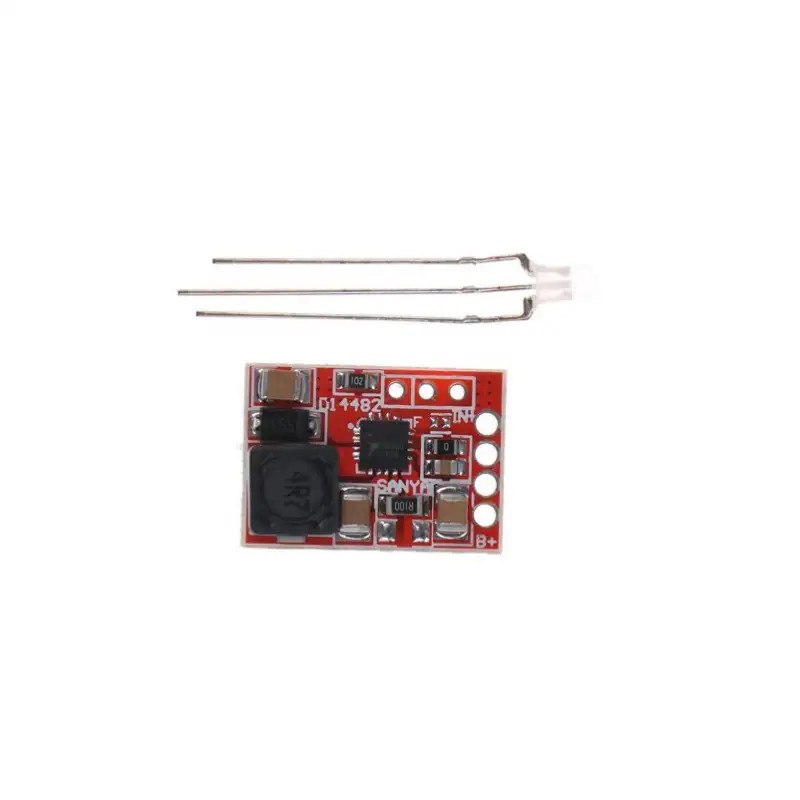

TP5000 3.6V/4.2V 1A LithiumBattery Charger Module

This is a Charging Module for the Lithium Battery based on the TP5000 Battery Charging IC. This module can charge a lithium battery with an current of up to 1A. This module has advance features like battery temperature protection, reverse battery shutdown, and short circuit protection.

The charging module comes with a dual colour led ,which is used to denote the charging and full status of the battery. The module also serves as an battery protection board, with built-in automatic recharge function it will automatically charge the battery when it gets fully discharged.

Applications:

1. Portable Equipment
2. MP3,Mp4 Players
3. Electric Tools
4. LED Drivers.

Features:

1. Single Battery Charger Module
2. Programable Charge Curren Form 0.1A to 2A
3. Programable Precharge Current Form 10% to 100%
4. LED

Specifications:

Operating Voltage (VDC)	4.2~9
Operating Temperature(°C)	-40 to 85
Charging method	Linear
Length (mm)	22
Width (mm)	15
Height (mm)	5
Weight (gm)	2
