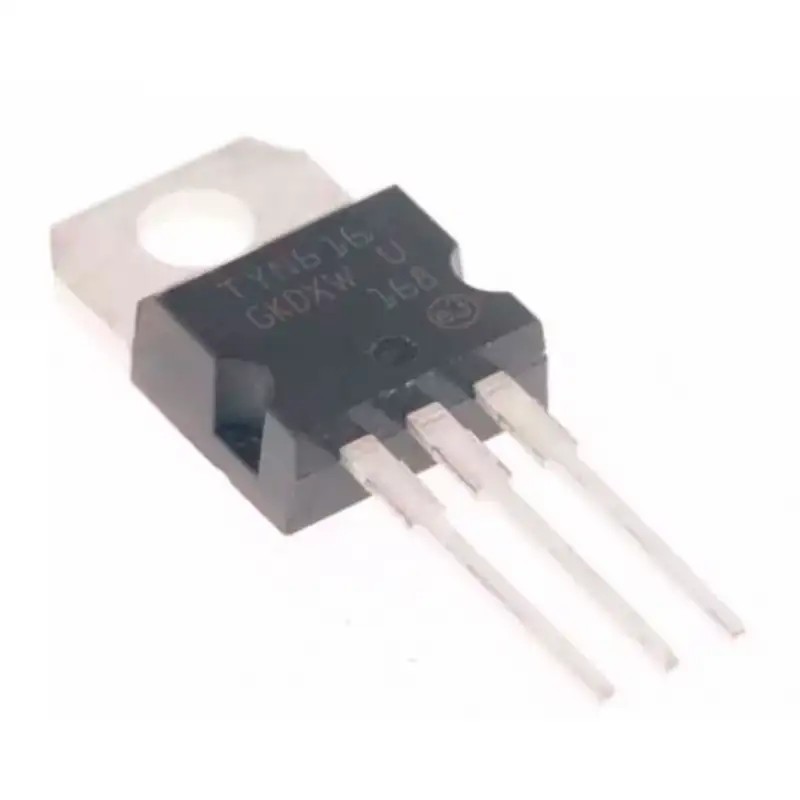

TYN616 - 600V - 16A SCR - Thyristor

The standard TYN61616 A SCRs series is suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities.

Features:-

• IT(RMS) =16 A

• VDRM/VRRM = 600 to 1000 V

• IGT = 25 mA

Specifications:-

Symbol	Parameter	Ratings	Units
IT(AV)	Average on-state current	10	A
IT(RMS)	Effective on-state current	16	A
ITSM	Non-Repetitive Peak On-state Current	200	A
Tj	Operating junction temperature range	-40 to 125	°C
Tstg	Storage Temperature	-40 to 150	°C
I2t	I2t Value for fusing	180	A2S
VRGM	Maximum peak reverse gate voltage	5	V
IGM	Peak gate current	A	A

Related Document:-

TYN616 SCR Data Sheet
