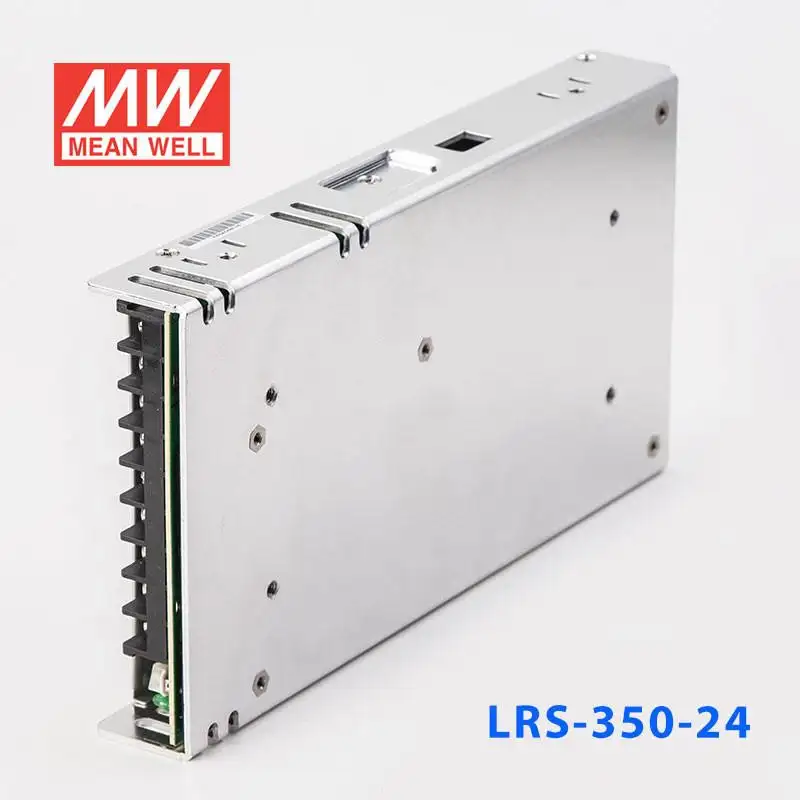

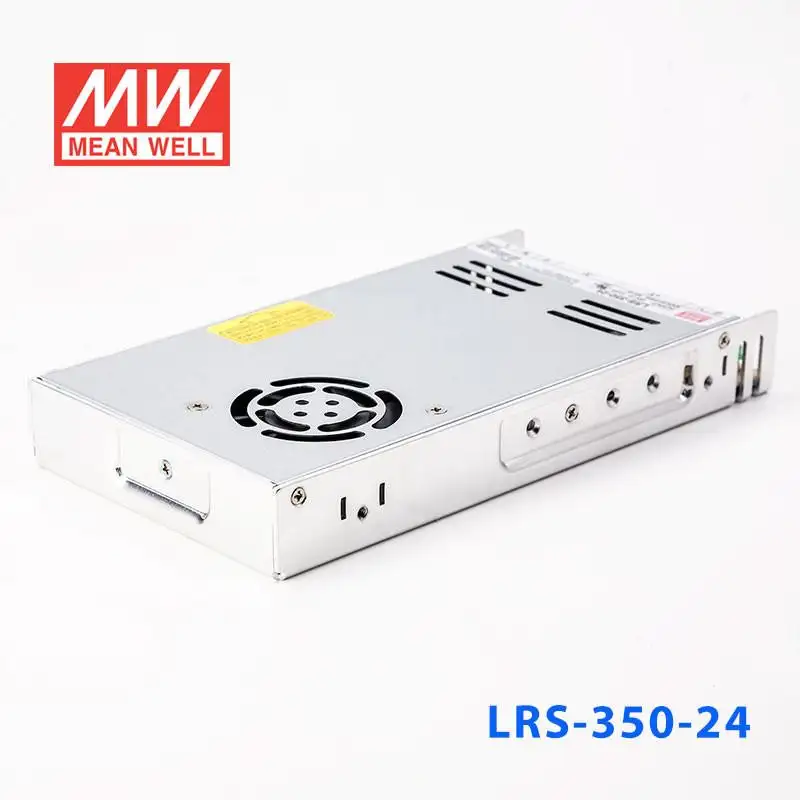

Name: LRS-350-24 Mean Well SMPS - 24V 14.6A - 350.4W Metal Power Supply
Brand: Generic
SKU: 0-8539917
Price: 3328 INR
Availability: InStock

Key Specifications:-

Output Voltage 24V
TypeÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Enclosed Type
Approx. Wattage 350W
Features Standard
Series LRS(Reliable)
Mechanical Form Enclosed
Warranty 3 Years Warranty
IP Level Non-Waterproof
Input Voltage 115V/230V by switch

Features:-

No load power consumption <0.5W for 150W;Â <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections:Â Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W);Â forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) andÂ IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty

Specifications:-

AC input voltage range	115 / 230VAC by switch
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	Â±10% by potentiometer
Overload protection Range	110%~140%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-25~+70Â°C (refer to output derating curve)
Safety standards	UL60950-1 approved
EMC standards	Design refer to EN55022 class A

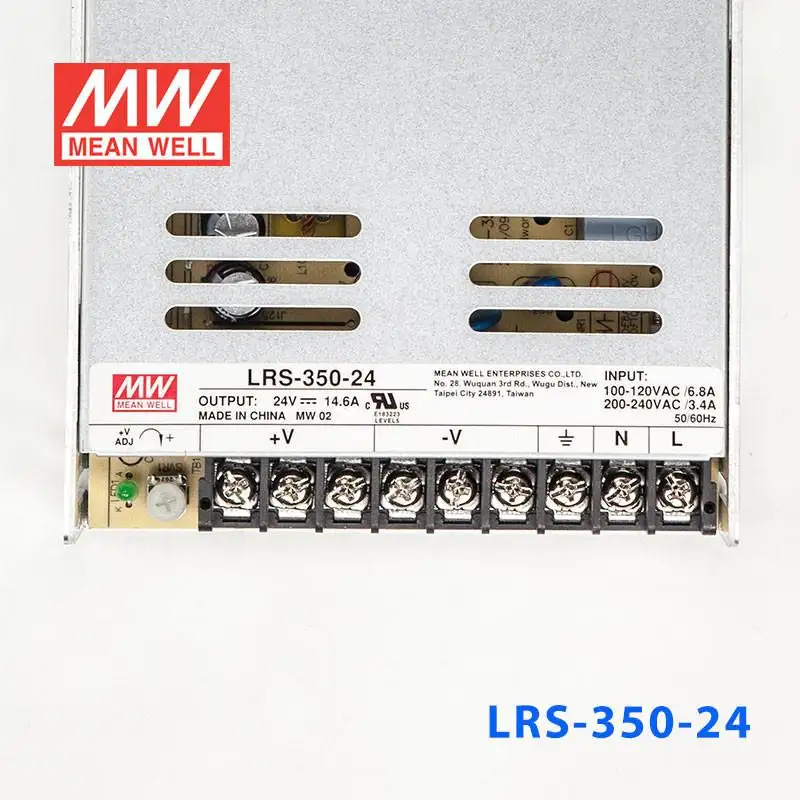

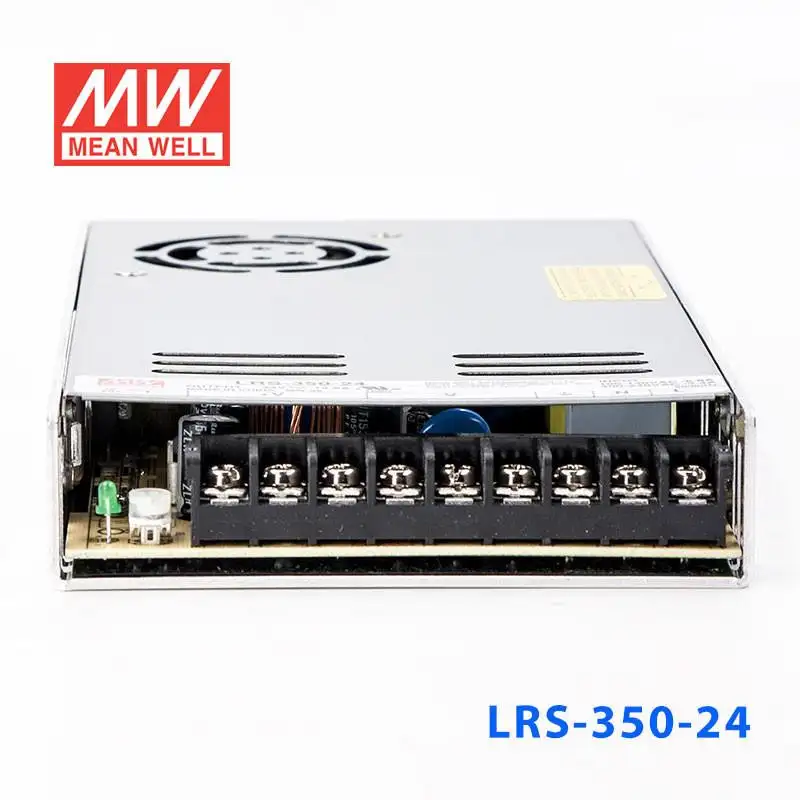

Connection	9P/9.5mm pitch terminal block
Dimension (LxWxH)	215x 115x 30
