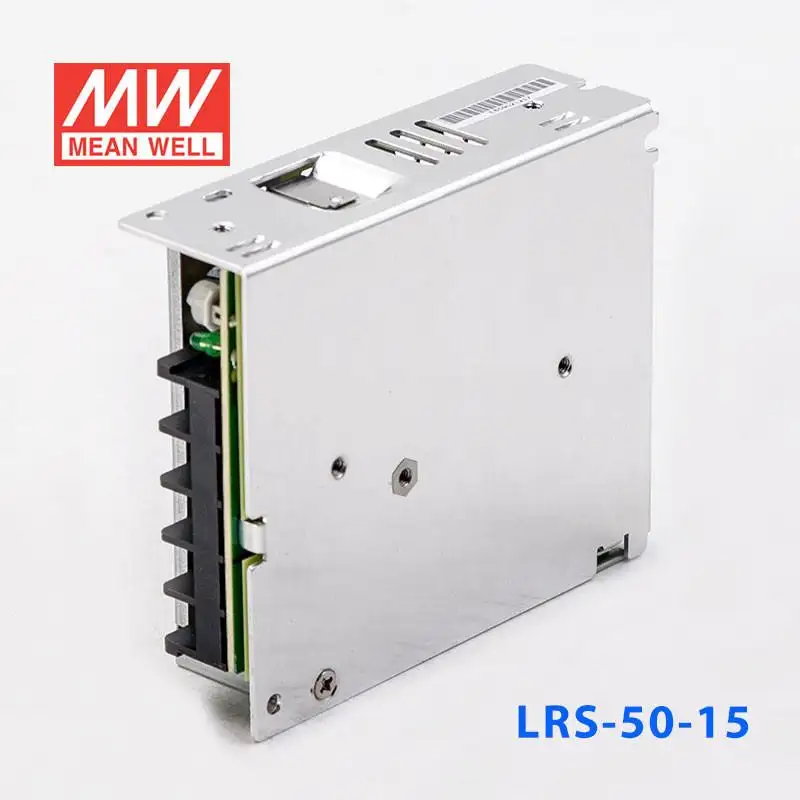

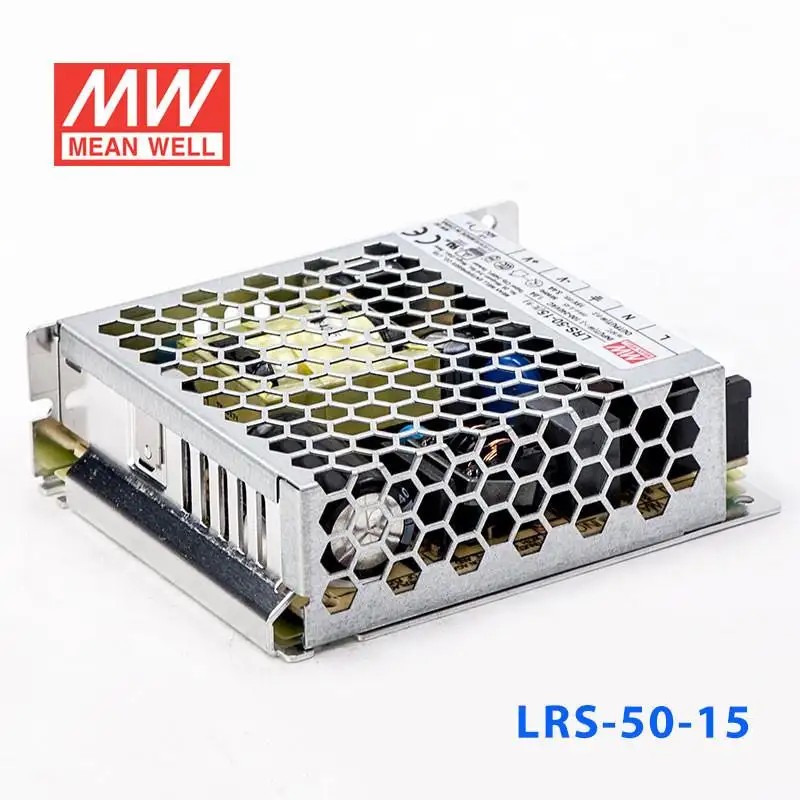

LRS-50-15 Mean Well SMPS - 15V 3.4A - 51W Metal Power Supply

Key Specifications:-

• Output Voltage 15V

• Type                         Enclosed Type

• Approx. Wattage 51W

• Features Standard

• Series LRS(Reliable)

• Mechanical Form Enclosed

• Warranty 3 Years Warranty

• IP Level Non-Waterproof

• Input Voltage 100-240V auto-select


Features:-

• No load power consumption <0.2W for 35W/50W;  <0.3W for 75W/100W
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Ultra compact and 1U low profile
• Withstand 5G vibration test
• High operating temperature up to 70oC
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
• Operating altitude up to 5000 meters
• High efficiency, long life and high reliability
• LED indicator for power on
• Low cost
• 3 years warranty

Specifications:-

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 45A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	110%~150%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

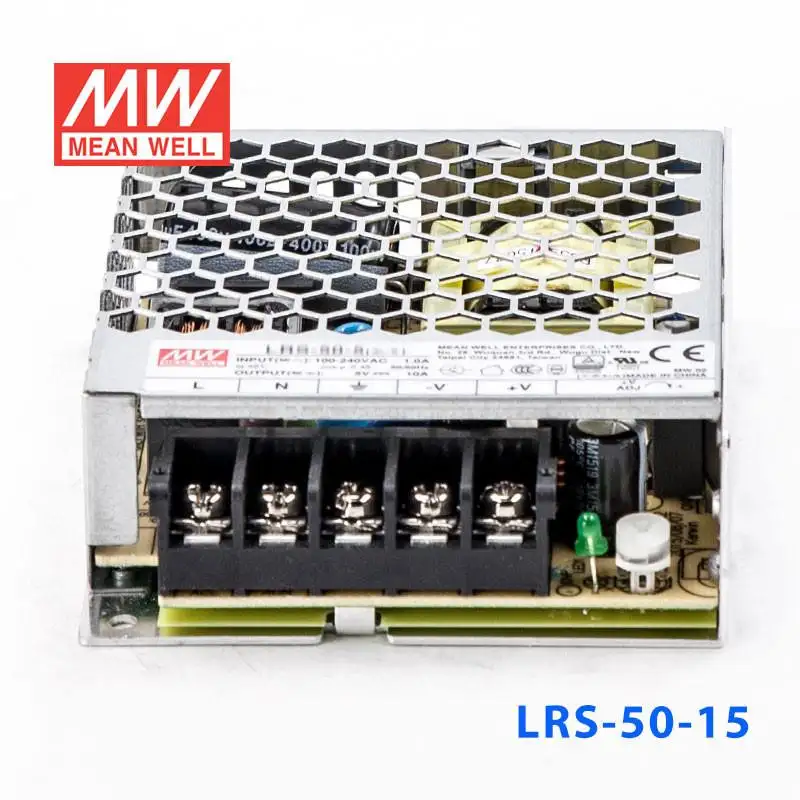

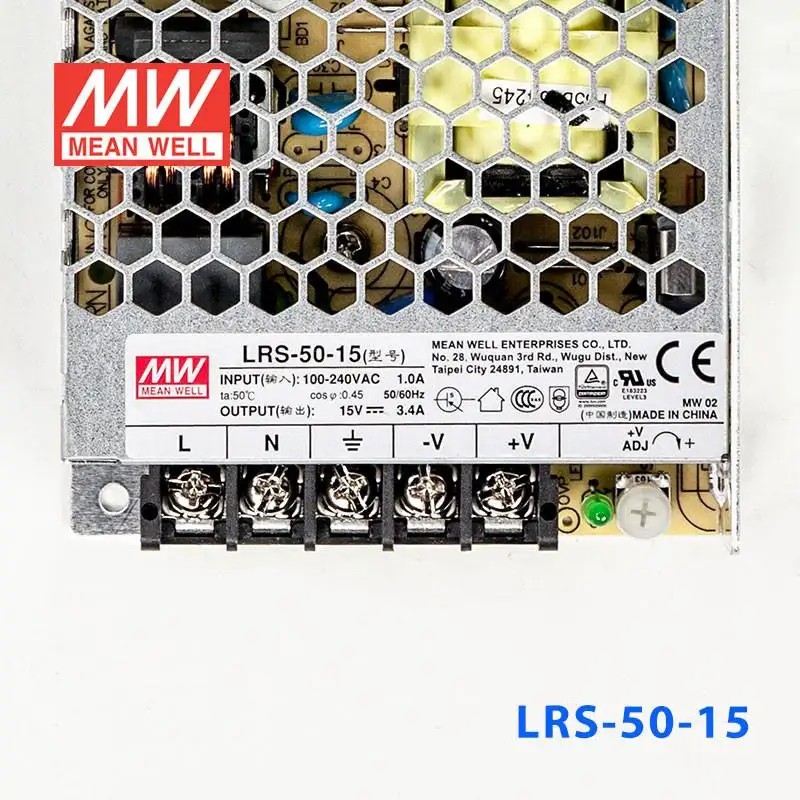

Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH)	99x 82x 30
