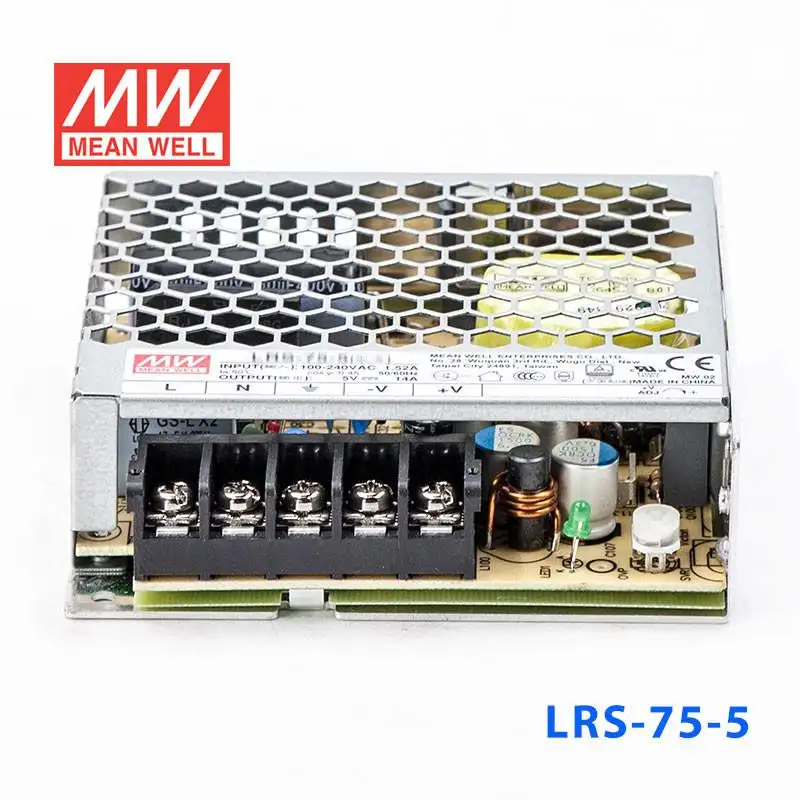

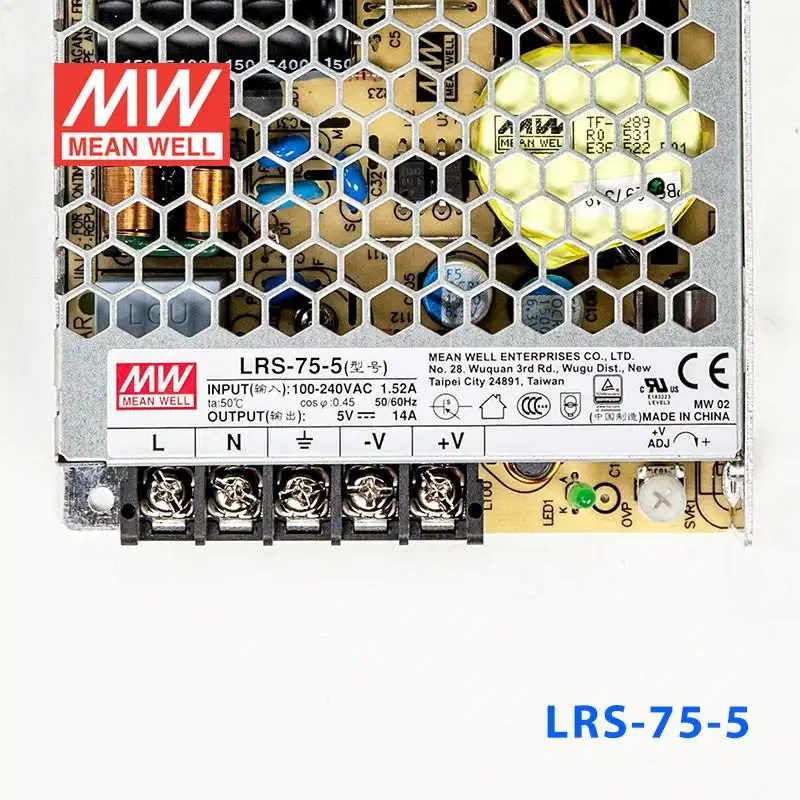

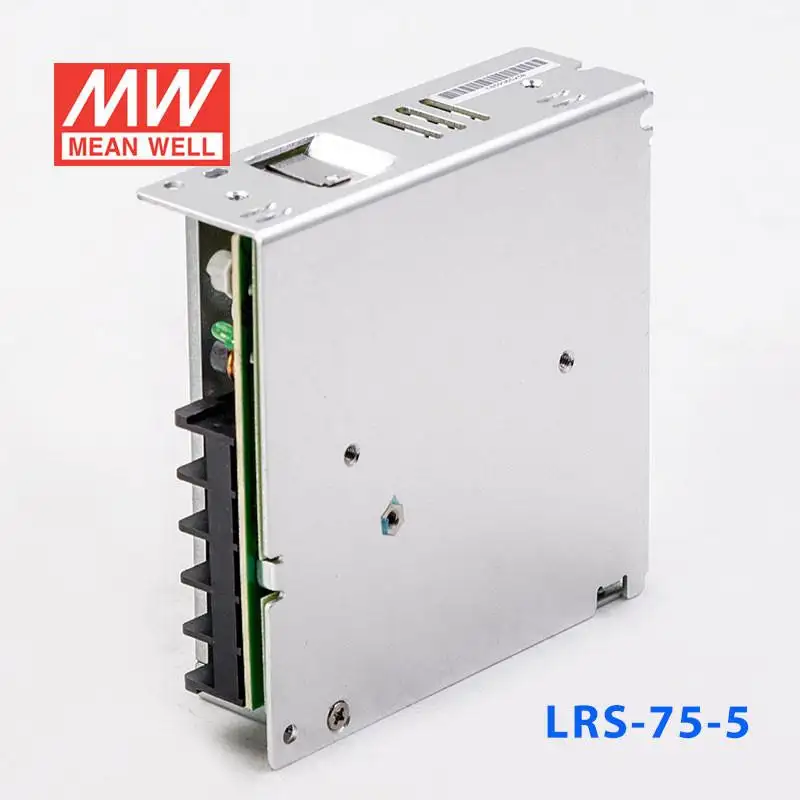

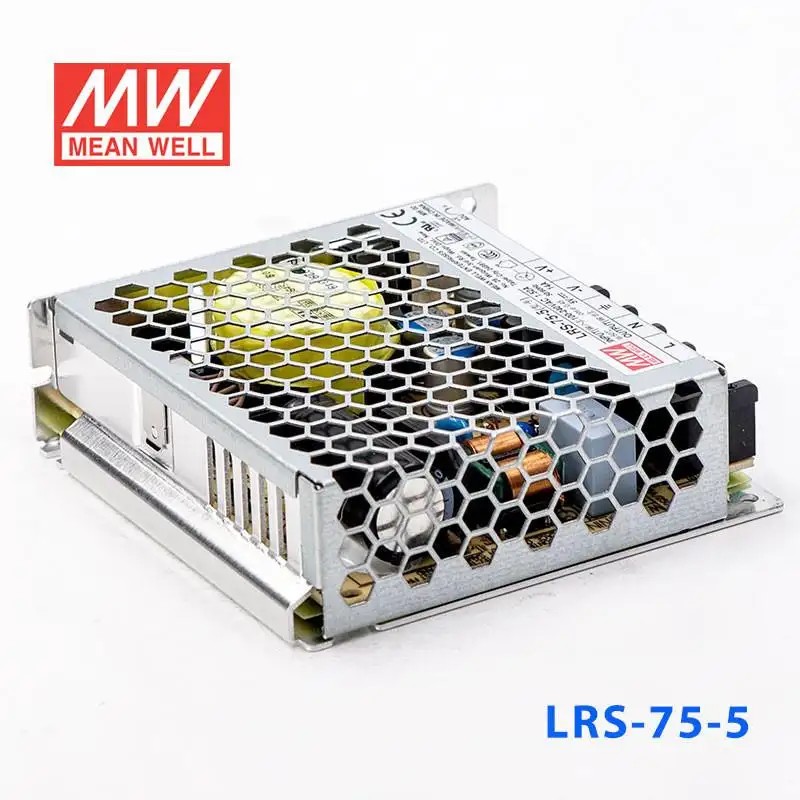

Name: LRS-75-5 Mean Well SMPS - 5V 14A - 70W Metal Power Supply
Brand: Generic
SKU: 0-3788892
Price: 1344 INR
Availability: InStock

Key Specifications:-

Output Voltage 5V
TypeÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Enclosed Type
Approx. Wattage 70W
Features Standard
Series LRS(Reliable)
Mechanical Form Enclosed
Warranty 3 Years Warranty
IP Level Non-Waterproof
Input Voltage 100-240V auto-select

Features:-

No load power consumption <0.2W for 35W/50W;Â <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty

Specifications:-

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 45A at 230VAC
DC adjustment range	Â±10% by potentiometer
Overload protection Range	110%~150%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature	-30~+70Â°C (refer to output derating curve)
Safety standards	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH)	99x 97x 30
