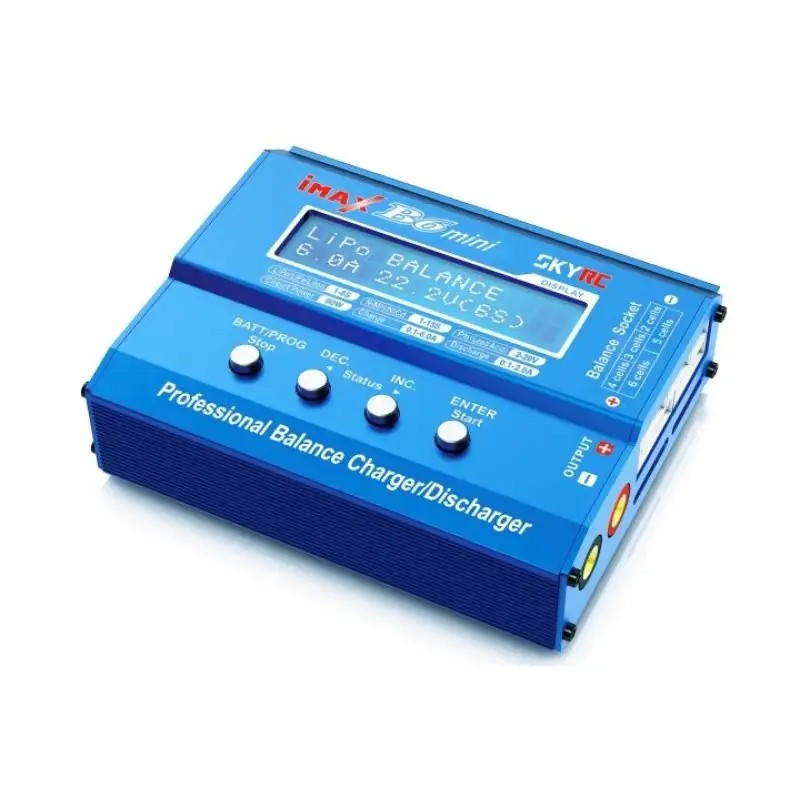

SkyRC iMAX B6 Mini Professional Balance Charger/Discharger (Original)

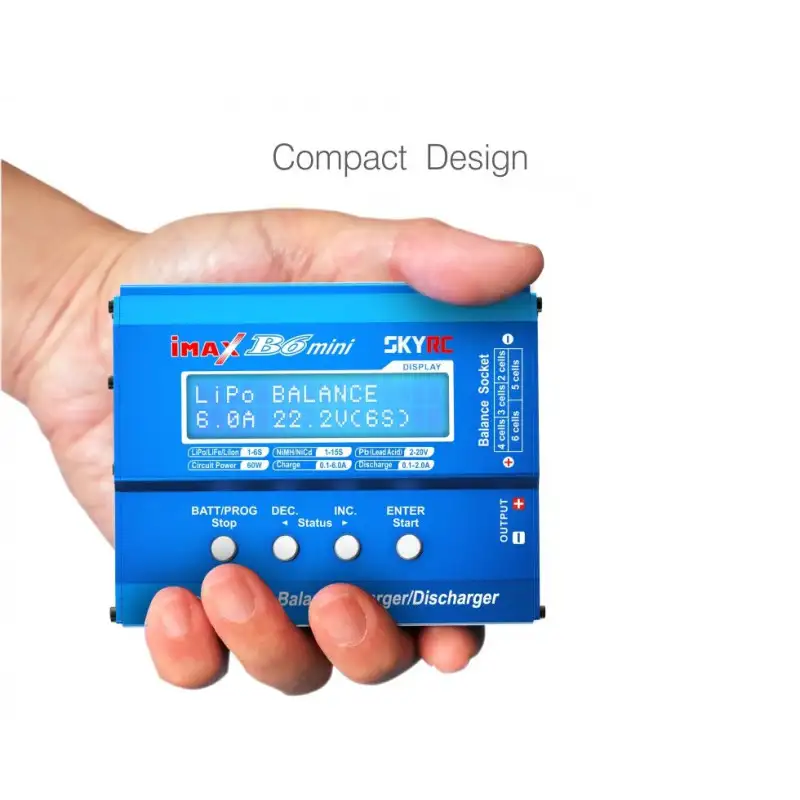

SkyRC iMAX B6 Mini Professional Balance Charger/Discharger (Original) is the small and upgraded version for well-known IMAX B6. Compared with B6, it has new features and functions with its super compact size. Smaller size, bigger power. Compared with B6, the power and charge current are 20% up. Users could connect B6 mini to PC for PC control and firmware upgrade. Whats more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter.

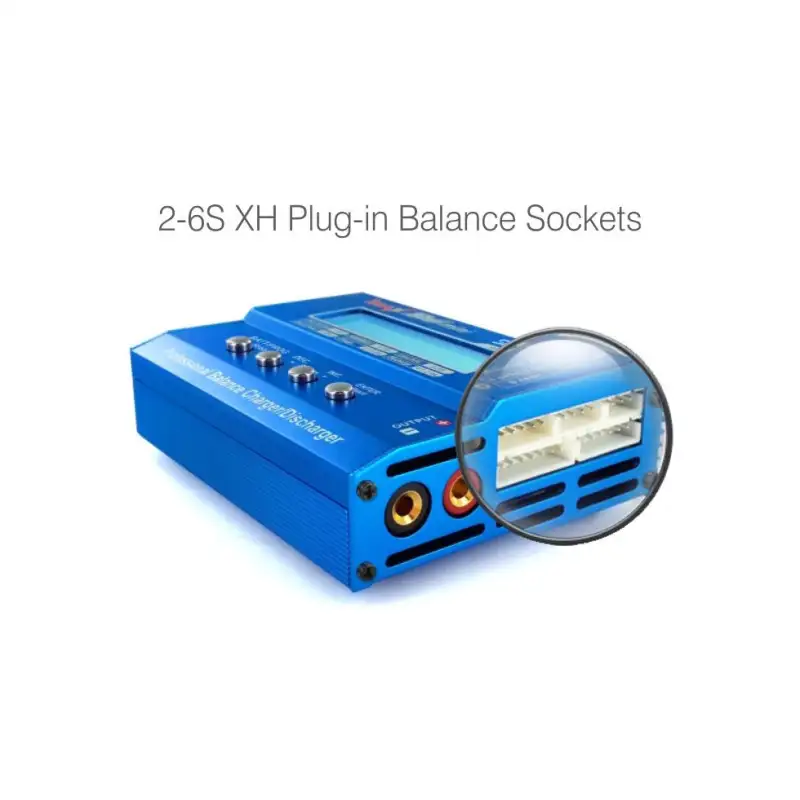

SKYRC B6 mini is a high-performance, microprocessor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 60W charge power.

Compared with B6, it has new features and functions with its super compact size. Smaller size, bigger power. Compared with B6, the power and charge current are 20 percent up. Users could connect the B6 mini to PC for PC controlling and firmware upgrading. Whats more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. SKYRC B6 mini is a high-performance, microprocessor control charge/discharge station with battery management, suitable for use with all current battery types, with integral equalizer for six-cell Lithium-Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries, maximum 6A charge current and maximum 60W charge power.

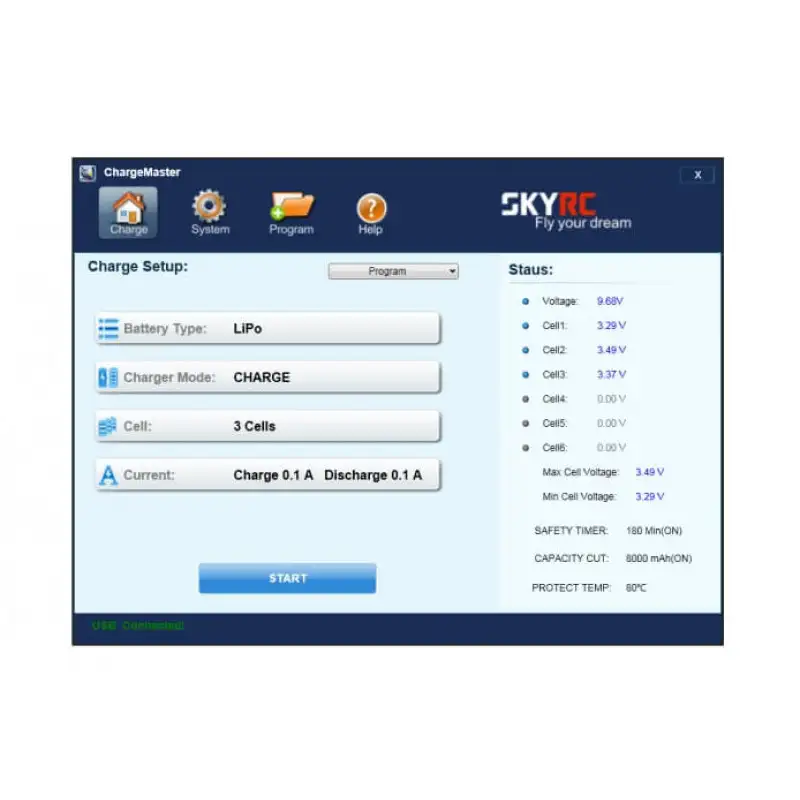

PC Control:

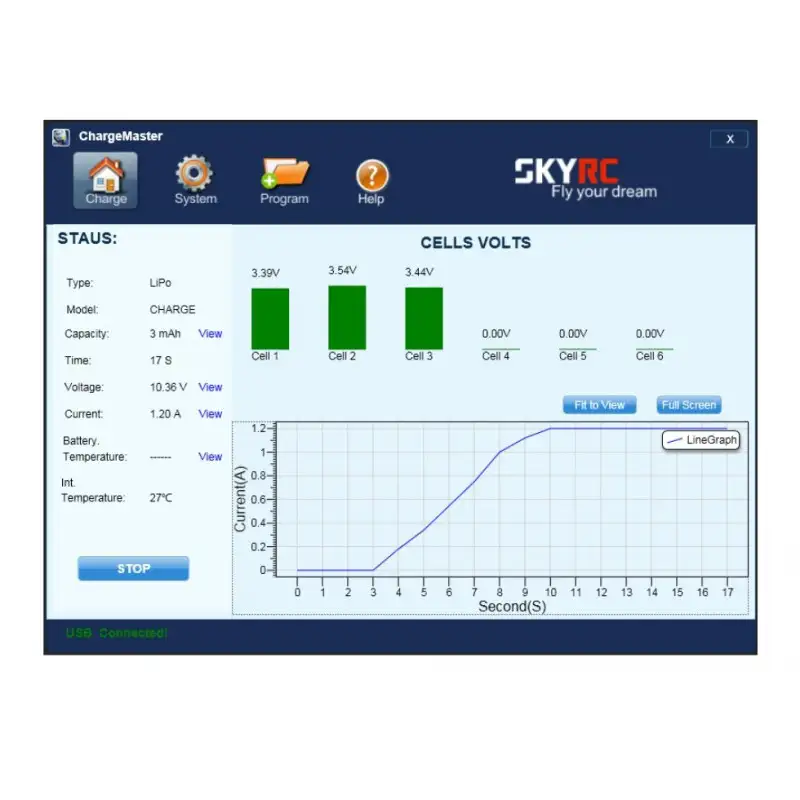

The user can monitor pack voltage, cell voltage, and other data during the charging, view charge date in real-time graphs, and can also control charging and update firmware from Charge Master.

1. Lithium battery meter
2. Battery internal resistance meter
3. Re-Peak mode for NiMH/NiCd battery
4. Terminal voltage control
5. PC control & firmware upgradable
6. Smartphone control & monitor

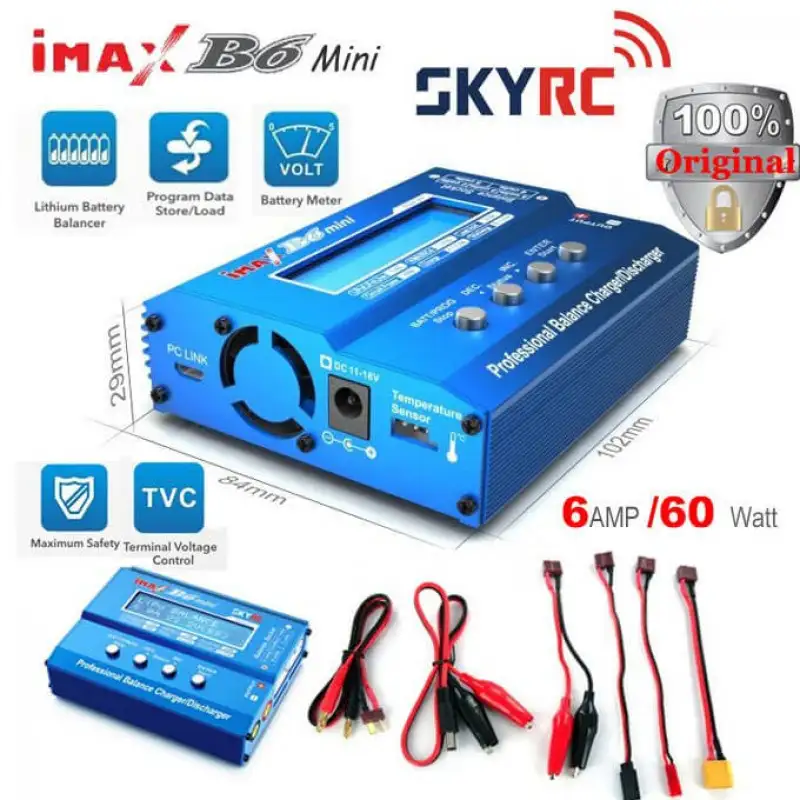

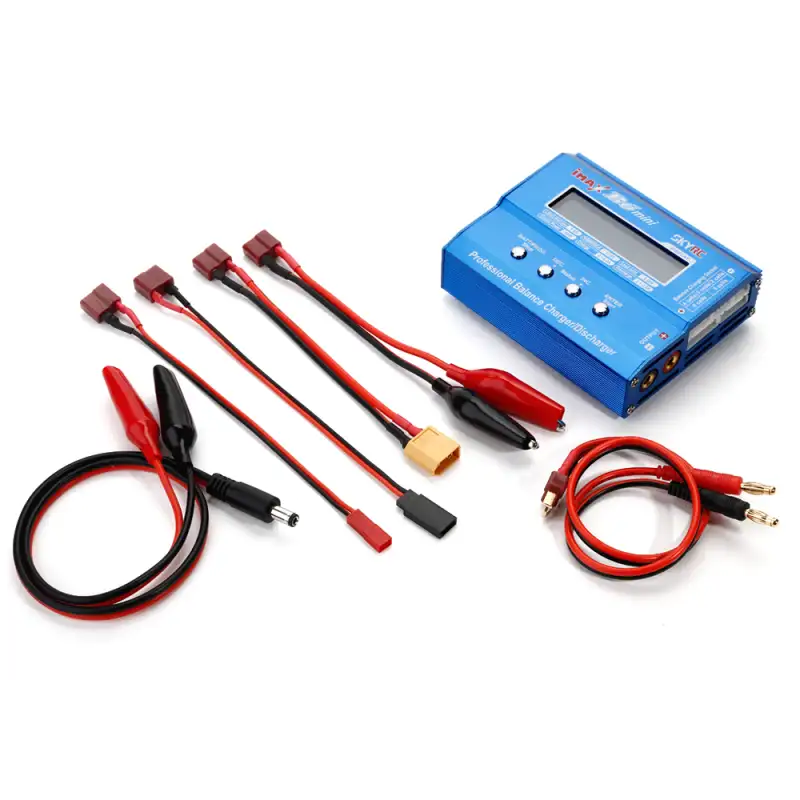

Package Includes:

Specifications:

DC Input Voltage Range (V)	11 ~ 18
Output Power(Watt)	60
Charge Current Range (A)	0.1 ~ 6
Maximum Discharge Power (W)	5
Dischage Current Range (A)	0.1 ~ 2.0
Drain Current for Balancing Li-Po's (mA/Cell)	300
Li-ion/Po cell count	1 ~ 6
NiCd/NiMH cell count	1 ~ 15 Cells
Pb battery voltage	2 ~ 20

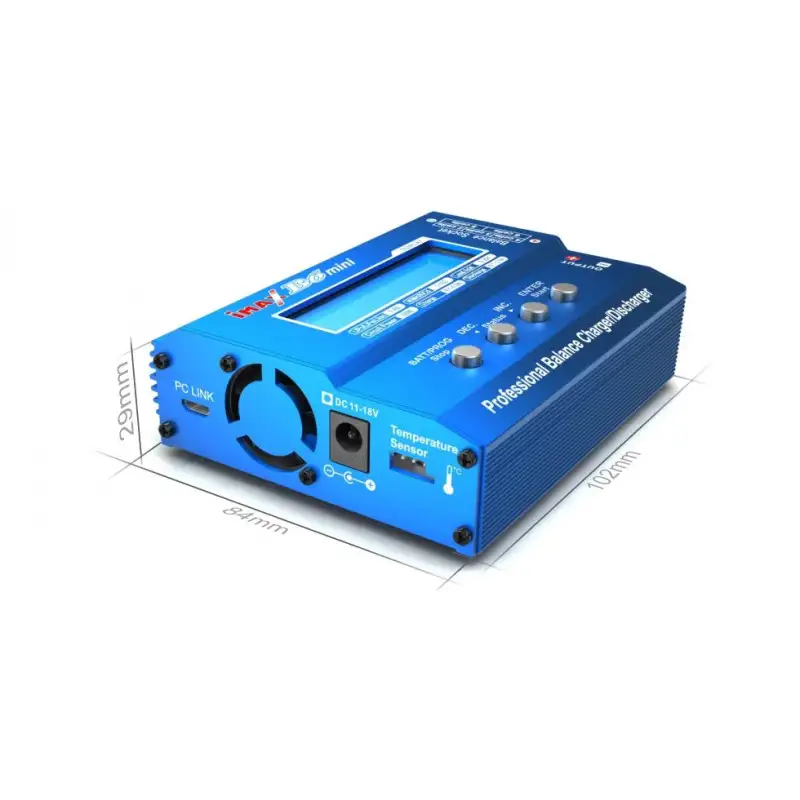

Dimensions (mm) LxWxH	102 x 84 x 29
Weight (gm)	234
